30 Ton FREEMAN SCHWABE TH30-3079 Travel Head Die Cutting Press
ConditionUsed
1 available

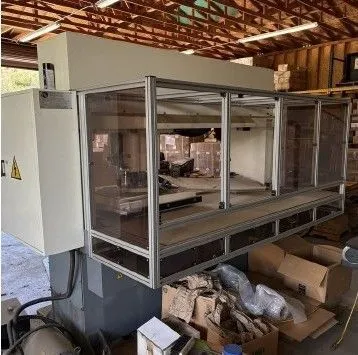

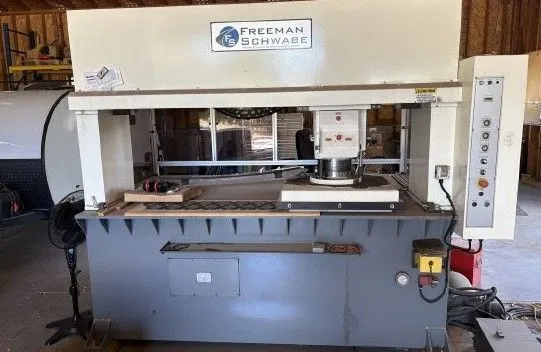

2012 FREEMAN SCHWABE TH30-3079 Die Cutting Press, 30" x 30" head, 30" x 79" bed, new 2012
30-metric-ton cutting force
30 × 30-inch cutting head
Approximately 30 × 79-inch machine bed
Manufactured July 2012
Serial No. TH30040
5.12-inch cutting stroke
6.46-inch maximum daylight
5 HP hydraulic motor
220V / 60Hz / 3-phase
Approximately 6,768 pounds
The machine includes the operation manual, assembly drawings, hydraulic schematic, parts information, and maintenance guidance.
2012 FREEMAN SCHWABE TH30-3079 Die Cutting Press, 30" x 30" head, 30" x 79" bed, new 2012
Imperial
| Tonnage | 30 T |
| Design | Travel Head |
| Bed (L-R) | 79" |
| Bed (F-B) | 30" |
| Cutting Head (F-B) | 30" |
| Cutting Head (L-R) | 30" |
| Stroke | 5.12" |
| Daylight | 6.46" |
| Dimensions | 104" x 60" x 86" high |
| Weight | 6,748 lbs |
30-metric-ton cutting force
30 × 30-inch cutting head
Approximately 30 × 79-inch machine bed
Manufactured July 2012
Serial No. TH30040
5.12-inch cutting stroke
6.46-inch maximum daylight
5 HP hydraulic motor
220V / 60Hz / 3-phase
Approximately 6,768 pounds
The machine includes the operation manual, assembly drawings, hydraulic schematic, parts information, and maintenance guidance.
