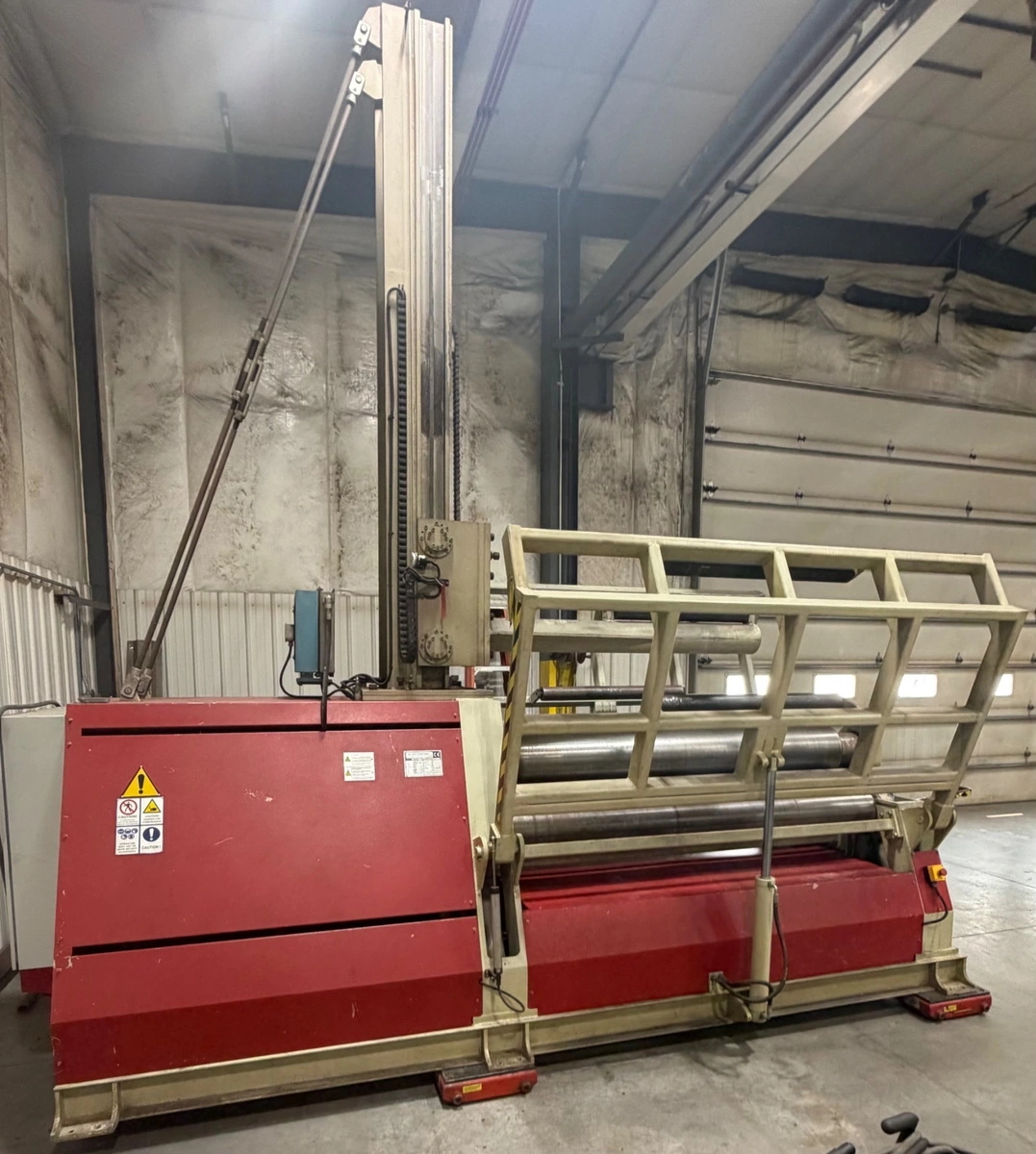

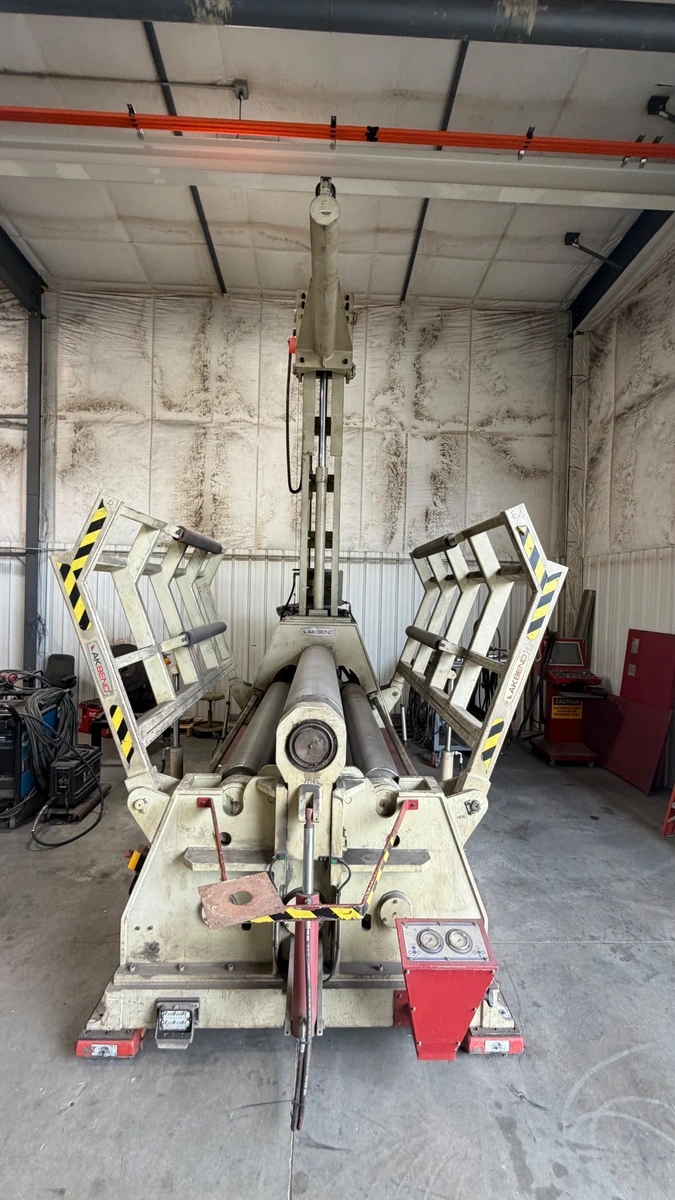

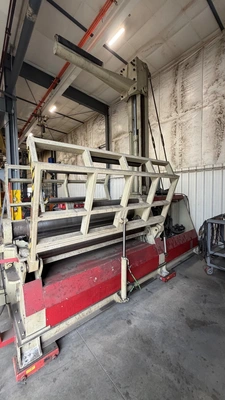

2015 AKYAPAK AHS 20/16 Hydraulic 4 Roll Bending Machine

2015 AKYAPAK AHS 20/16 Hydraulic 4 Roll Bending Machine

Sell Your AKYAPAK AHS 20/16
847-640-8600
Sales@kemplermachinery.com
ConditionUsed
1 available
Sell Your AKYAPAK AHS 20/16

Overview

Type:
Plate Bending and Slip Roll
Manufacturer:
AKYAPAK
Model:
AHS 20/16
Year:
2015
Stock #:
89610
Status:
For Sale
Serial #:
ST400-141

Description

6' x 3/4" AKYAPAK AHS 20/16, 3/4" max. bending, 5/8" pre-bending, Equipped with Overhead Arm and Side Supports, New 2015

Max Thickness3/4"0.7874"
Length of Rolls6.5'6.56'
(Init/Dbl Pinch or Pyramid)DBL PINCHDBL PINCH
# Rolls44
Hyd/MechHydHyd
Dimensions180" long x 70" wide x 60" high (1730 mm x 4535 mm x 1490 mm high)180" long x 70" wide x 60" high (1730 mm x 4535 mm x 1490 mm high)
Weight17,637 lbs. (8,000 kg)17,637 lbs. (8,000 kg)

Max Thickness: 3/4" (20 mm)
Max Pre-bending Thickness: 5/8 in (16 mm)
Working Length: 6.5' (2000 mm)
Upper Roll Diameter: 13" (330 mm)
Lower Roll Diameter: 11.8" (300 mm)

Motor has been converted to 480 volts

Specifications are accurate to the best of our knowledge, subject to verification.

Overhead Arm and Side Supports
NC Controls
Cone Rolling Attachment
