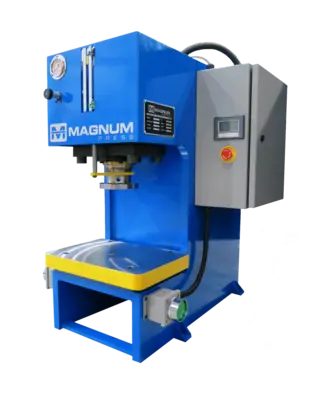

35 Ton MAGNUM MCC35 Gap Frame Press
ConditionNew
1 available
New
35 Ton MAGNUM, Model MCC35, Compact Bench Model, 6" stroke, 12" daylight, 18" x 13" bed, Made in the USA

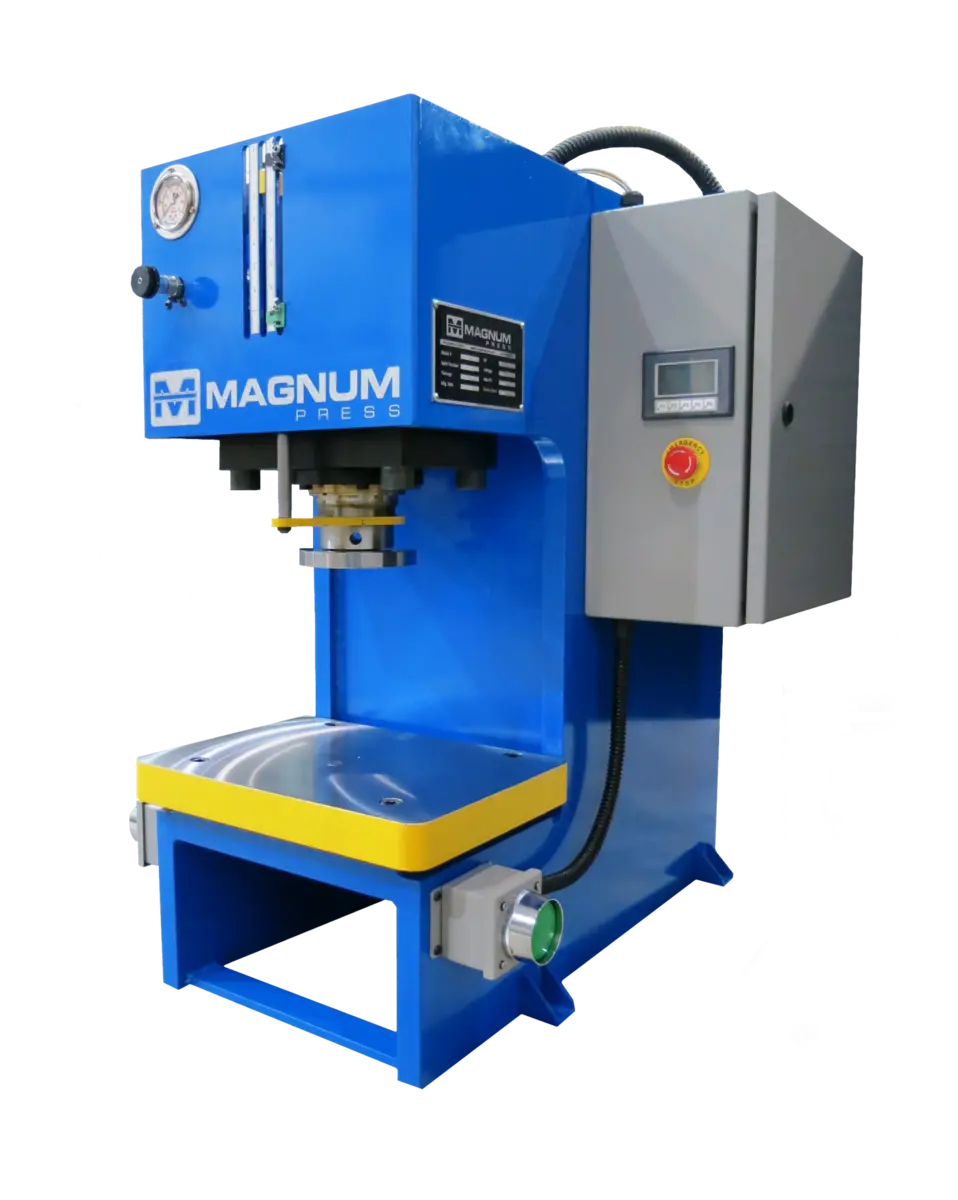

35 Ton MAGNUM Model MCC35 Gap Frame Hydraulic Press
Compact Bench Model
Rated Tonnage: 35.3
Minimum Tonnage: 7.1
Stroke (in, adjustable): 6
Daylight (in): 12
Shut Height (in): 6
Throat (in): 6
Bolster L-R (in): 18
Bolster F-B (in): 13
Female Threaded Rod End: 3”-12 Thread
HP (1800 rpm): 5
Input Voltage (specify): 208-230-460/3/60
Speeds(Inches per Minute)
RAPID: 61 ipm
WORK: 27 ipm
RETURN: 49 ipm
CPM @ 1” Stroke (.13" WORK Stroke): 22
CPM @ 4" Stroke (.13" WORK Stroke): 12
Reservoir Capacity (gal): 10
Approx Foot Print (Wide x Deep x High): 32" X 41" X 42"
Approx Weight (lbs): 1,490 lbs.
STANDARD INCLUDED FEATURES
Structural Designs undergo rigorous analysis through Finite Element Analysis design testing
CAT 4 Safety Relay 2-Hand No-Tie-Down Start
Adjustable tonnage through full range of stroke
PLC with HMI based controls
Pressure Reversal Mode
Removable Power Unit
Adjustable Stroke
NEMA enclosures
Single Point Power Connection
Removable Bolster
True Two-Speed RAM
Manual Starter with Lockout and Overload Protection
Electro-Hydraulic Decompression with FAST ACTING 3 stage decompression offering resistance to damaging decompression pressure spikes that is far superior to hydraulic or mechanical decompression
Flat Face O-Ring Hydraulic Connections providing the most leak resistant hydraulic system
SOME AVAILABLE OPTION FEATURES:
1. FS-02 Bench with Adjustable Leveling Swivels.
2. Banner Zero Force Opto Touch Palm Buttons with Finger Guards
3. LCG1 Light Curtain Guarding: Full perimeter guarding. Front mounted light curtain guarding includes emitter, detector, mounting hardware and installation. Fixed guarding on both sides using wire mesh.
4. MCC35RE RAM Quick Change Die Coupler Stud. Option reduces daylight by 3.19”.
5. SRDC-4.0 Split Ring Die Coupler
6. QCDC-4.0 Sliding Shoe Quick Change Die Coupler $675.00
