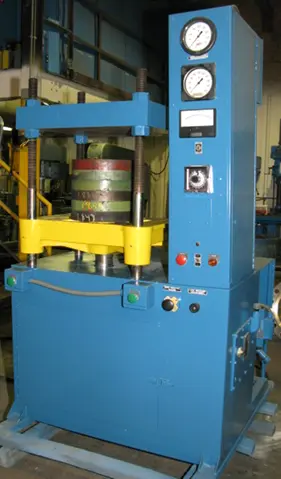

WABASH 60 Ton

OVERALL LEFT TO RIGHT BED IS 26” AND FRONT TO BACK BETWEEN THE POSTS IS 14.75”.
NOMINAL BED IS 20.25” X 18”. 8” BORE CLAMP CYLINDER WITH APPROX 7” MAX STROKE.
DAYLIGHT IS ADJUSTABLE FROM APPROX 9” TO 21”.
FULLY GUIDED WITH 6” BUSHINGS ON 1.75” DIAMETER TIE RODS.
OPERATOR HEIGHT IS APPROX 37.5”.
SELF-CONTAINED HYDRAULIC SYSTEM: 2 HP MOTOR (230/460V; 1800 RPM);
RACINE PUMP 20H01100; ADJUSTABLE LOW AND HIGH PRESSURE AND GAUGE FOR EACH.
RELAY CONTROL SYSTEM: TEMP READ-OUT WITH SELECTOR FOR TOP OR BOTTOM (HEATED PLATENS NOT INCLUDED);
0-30 SECOND TIMER; MOTOR ON/OFF; PALM BUTTONS; E-OPEN; ETC… APPROX 42” X 44” X 76” TALL
APPROX 4,000 POUNDS.
