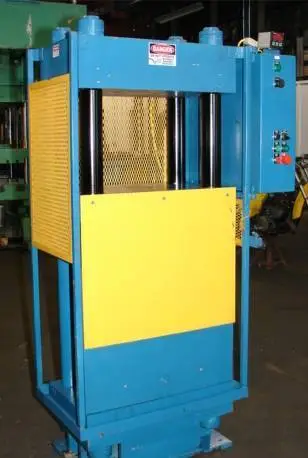

170 Ton 4 Post Hydraulic Molding Press

170 Ton Hydraulic Press
4 Post
Upstroke
NEW ELECTRICAL CONTROLS AND REFURBISHED HYDRAULIC SYSTEM IN 2002
OVERALL BED SIZE: 29” L TO R X 17” F TO B.
DISTANCE BETWEEN POSTS: 19” L TO R X 8” F TO B.
NOMINAL BED: 19” X 17”.
APPROX 16” DAYLIGHT.
DOUBLE ACTING RAM WITH APPROX 12” STROKE:
12” BORE
11” ROD
TWO .75” NPT PORTS; ONE FOUR-BOLT 2” PRE-FILL PORT.
FULLY GUIDED WITH 4” BUSHINGS ON 3.5” DIAMETER POSTS.
49” OPERATOR HEIGHT.
SIDES AND REAR GUARDED WITH EXPANDED METAL (AND PANEL)
CONTROL PANEL INCLUDING:
A.B. MICROLOGIX 1000 PLC
KOYO DIGITAL TIMER; “PALM” BUTTONS
“O.K. TO RELEASE” LIGHT
MANUAL/AUTO SWITCH
HYDRAULIC SYSTEM:
5 HP
230/460 VOLTS
13 GALLON TANK
VICKERS 5 GPM PRESSURE COMPENSATED PISTON PUMP RATED TO 3000 PSI
COOLER ON MOTOR; REMOTE PRESSURE CONTROL AT OPERATOR STATION
HYCON DIGITAL TONNAGE GUAGE
APPROX SPEEDS:
10 IPM CLOSING/PRESSING
30 IPM OPENING
HYDRAULIC UNIT DIMENSIONS: 32” X 34” X 30” TALL
PRESS DIMENSIONS: 44” X 36” X 77” TALL
APPROX WEIGHT: 7,000 LBS
HYDRAULIC AND ELECTRICAL DRAWINGS

Press is being offered 'As-Is'
All machinery specifications need to be independently verified by buyer.
