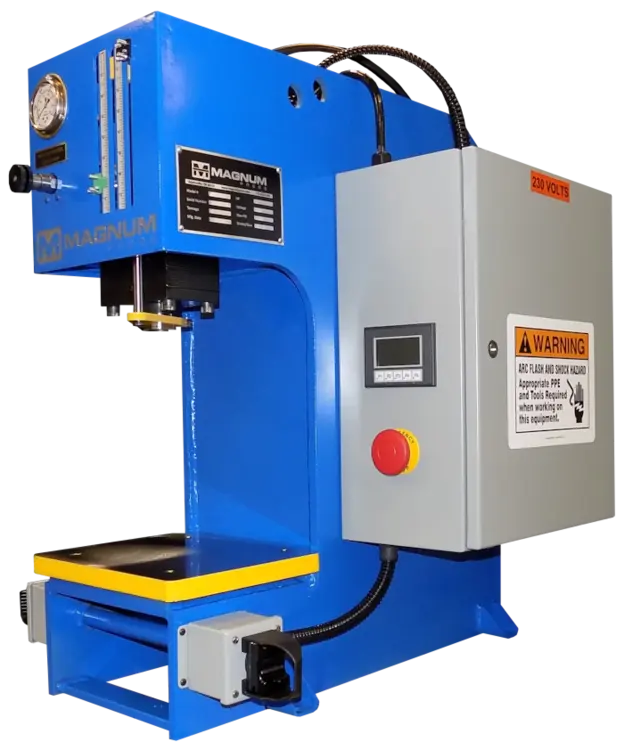

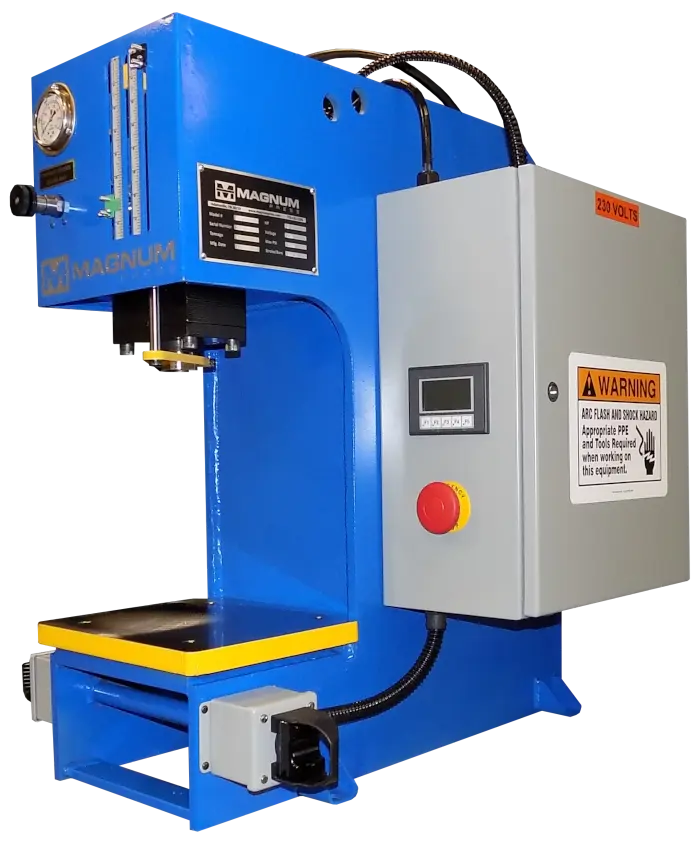

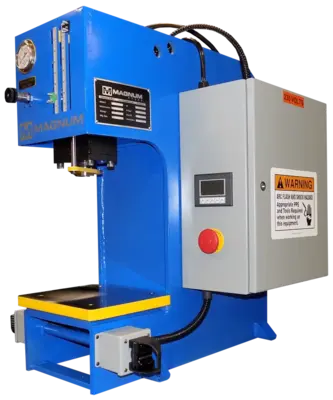

6 Ton MAGNUM MCC6 Gap Frame Hydraulic Press

INCLUDED FEATURES:

Structural Designs undergo rigorous analysis through Finite Element Analysis design testing.
CAT 4 Safety Relay 2-Hand No-Tie-Down Start.
Adjustable tonnage through full range of stroke.
PLC with HMI based controls.
Pressure Reversal Mode.
Removable Power Unit
Adjustable Stroke.
NEMA enclosures.
Single Point Power Connection
Removable Bolster.
True Two-Speed RAM
Pressure adjustment at rear of press.
Standard Hydraulic Rod Lock.
Counterbalance prevents RAM from being extended by weight of tooling without power.
Manual Starter with Lockout and Overload Protection.
Electro-Hydraulic Decompression with FAST ACTING 3 stage decompression offering resistance to damaging decompression pressure spikes that is far superior to hydraulic or mechanical decompression.
Flat Face O-Ring Hydraulic Connections providing the most leak resistant hydraulic system.
18 Month Warranty (Magnum Press, Inc. Parts Only Warranty warrants products to be free from defects in materials and workmanship for a period of eighteen (18) months from the date of shipment).

ADDITIONAL AVAILABLE OPTIONS:
1 FS-01 Bench with adjustable leveling swivels $1,395.00
2 Banner Zero Force Opto Touch Palm Buttons with Finger Guards $525.00
3 LCG1 Light Curtain Guarding: Full perimeter guarding. Front mounted light curtain guarding includes emitter, detector, mounting hardware and installation. Fixed guarding on both sides using wire mesh. $3,700.00
4 MCC6RE RAM Quick Change Die Coupler Stud. Option reduces daylight by 1.44”. $200.00
5 SRDC-1.75 Split Ring Die Coupler $350.00
QCDC-1.75 Sliding Shoe Quick Change Die Coupler $425.00
6 Standard Bolster comes plain. Magnum can provide custom machining. Contact Us For Pricing
(All Pricing is Subject to Change)
