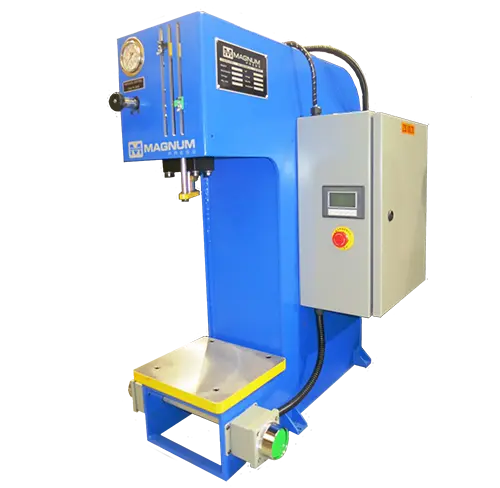

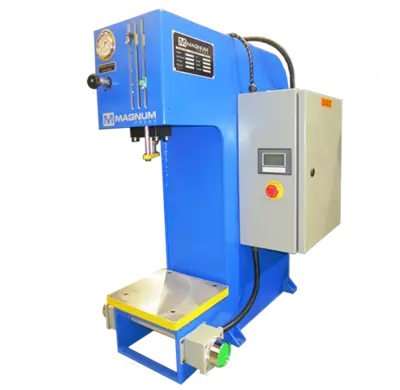

15 Ton MAGNUM MCC-15 C-Frame Hydraulic Press
ConditionNew
New
Magnum Model MCC15, 15 Tons, 6" stroke, 12" Daylight, 12 month warranty
Rated Tonnage 15.7
Minimum Tonnage 3.1
Stroke (in, adjustable) 6
Daylight (in) 12
Shut Height (in) 6
Throat (in) 6
Bolster Dimensions 14” Left-Right x 12” Front-Back
Female Threaded Rod End 1-7/8”-12 Thread
HP (1800 rpm) 3
Input Voltage (specify) 208-230-460/3/60
SPEEDS Inches Per Min (IPM)
RAPID 108
WORK 42
RETURN 69
CPM @ 1” Stroke (.13" WORK Stroke) 32
CPM @ 4" Stroke (.13" WORK Stroke) 10
Reservoir Capacity (gal) 10
Structural Designs undergo rigorous analysis through Finite Element Analysis design testing
CAT 4 Safety Relay 2-Hand No-Tie-Down Start
Adjustable tonnage through full range of stroke
PLC with HMI based controls
Pressure Reversal Mode
Removable Power Unit
Adjustable Stroke
NEMA enclosures
Single Point Power Connection
Removable Bolster
True Two-Speed RAM
Pressure adjustment at rear of press
Standard Hydraulic Rod Lock
Counterbalance prevents RAM from being extended by weight of tooling without power
Manual Starter with Lockout and Overload Protection
Electro-Hydraulic Decompression with FAST ACTING 3 stage decompression offering resistance to damaging decompression pressure spikes that is far superior to hydraulic or mechanical decompression
Flat Face O-Ring Hydraulic Connections providing the most leak resistant hydraulic system
ADDITIONAL OPTIONS AVAILABLE (inquire within). Additional options available (but not limited) to: light curtains, bench, Zero Force Touch Buttons, Quick Change, and much more
