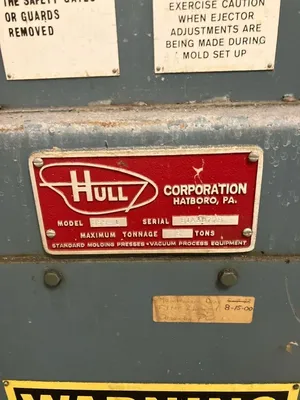

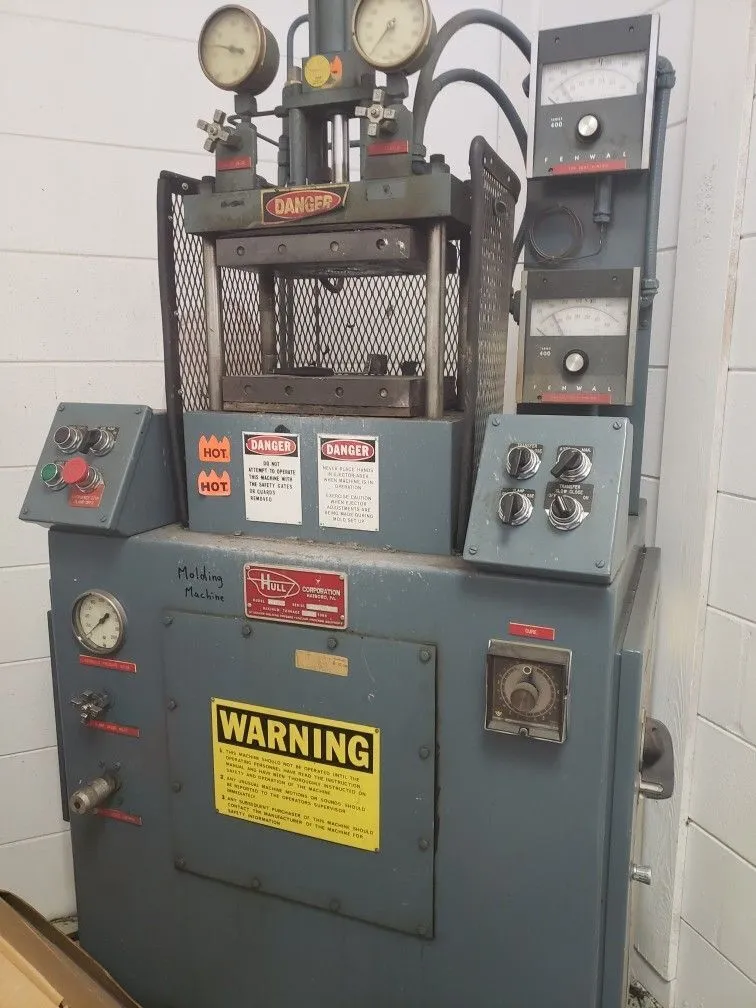

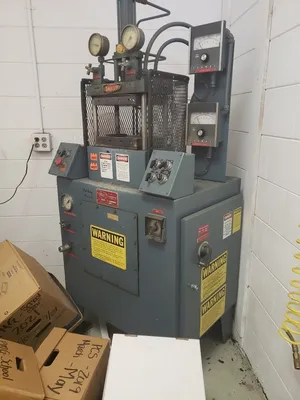

Hull 359-L Transfer Molding Press

6 TON HULL UPSTROKE HYDRAULIC TRANSFER MOLDING & LAMINATING PRESS
w/1.5 Ton Top Transfer
Model 359L; 4 Post Type
Distance Between 1" Dia. Posts: 12" L-R x 5" F-B
Platen Area (Nominal): 12" L-R x 8" F-B
Overall Dimensions of Platen: 15" L-R x 8" F-B
Stroke of Fully Guided Platen: 0 - 6" Maximum
Stroke of Hydraulic Transfer Ram: 0 - 6" Maximum
Daylight Opening (Total): 9" Maximum
Daylight Opening Between Hot Plates: (1) 5" Maximum
Hot Plates (2): 11" L-R x 8" F-B x 1.5" Thick
(Electrically Heated)
Insulation (2): 11" L-R x 8" F-B x 1/2" Thick
Bottom Ejector Rod Spacings: 13" L-R
Main Ram Diameter: 4"/2" @ 960 PSI - 6 Tons
Transfer Ram Diameter: (1) 2"/1" @ 960 PSI - 1.5 Tons
Floor to Top of Moving Platen: 46"
Power Unit (Base of Press): Submerged Hydraulic Pump
Driven by 2 HP 960 RPM
208/3/50 Motor
Speeds Approx.: CLAMP TRANSFER
55"/Min. Closing 210"/Min. Closing
55"/Min. Pressing to 6 Tons 0-210"/Min. Pressing to 1.5 Tons 70"/Min. Return 250"/Min. Return
Controls: Pushbutton Operation w/Stroke &
Pressure Control
Dual Palm Buttons
Selector Switch For Manual or
Semi-Automatic Operation
Cycle Timer
Pressure Gauges
Weight approx. 1300#
Overall Dimensions Approx. 36" L-R x 38" F-B x 74" H

This machine is being sold 'As-Is'

All machinery specifications must be independently verified by buyer.
