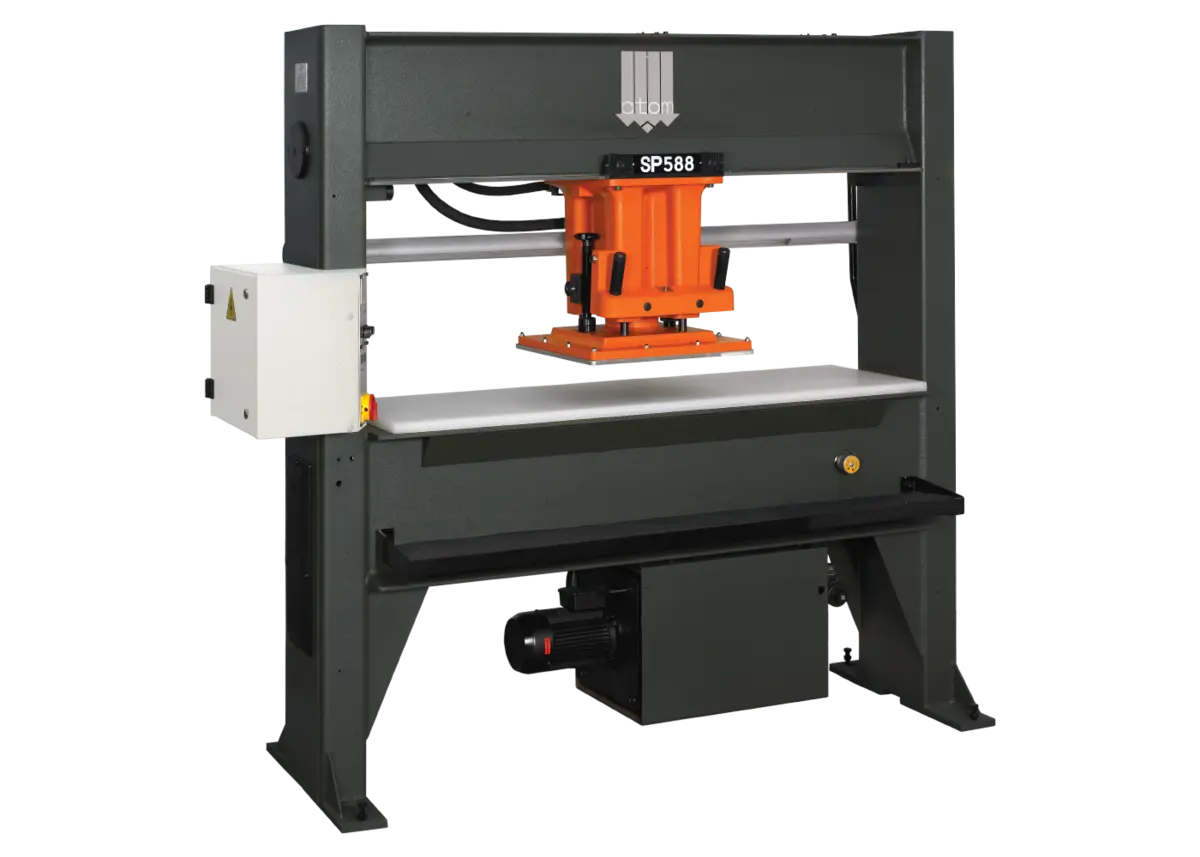

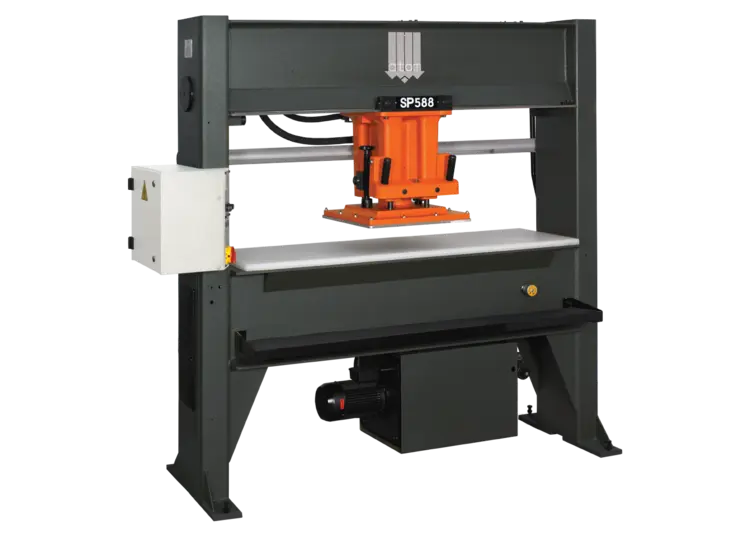

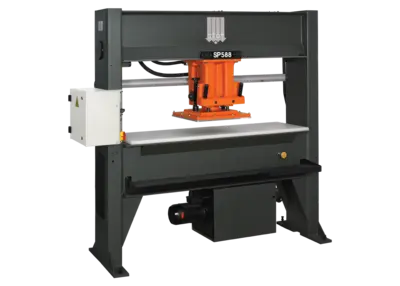

ATOM HSP 588/10 Travel Head Die Cutting Press

ATOM HSP 588/10 Travel Head Die Cutting Press

Sell Your ATOM HSP 588/10
847-640-8600
Sales@kemplermachinery.com
ConditionNew
1 available
Sell Your ATOM HSP 588/10

Document (1)

ATOM 588 Series Travel Head Die Cutting Press Brochure.pdf

Overview

Type:
Die Cutting Press, Clicker Press
Manufacturer:
ATOM
Model:
HSP 588/10
Condition:
New OEM Stock
Status:
For Sale

Description

30 Ton Atom, Model 588/10, Manual Traveling Head Press, 78" x 30" table, 30" x 30" trolley head

Tonnage30 T27.216 t
DesignTravel HeadTravel Head
Bed (L-R)78"1,981.2 mm
Bed (F-B)30"762 mm
Cutting Head (F-B)30"76.2 cm
Cutting Head (L-R)30"76.2 cm
Dimensions93" x 63" x 99" high (2360x1600x2500 mm)93" x 63" x 99" high (2360x1600x2500 mm)
Weight5,005 lbs. (2270 kg) - with oil5,005 lbs. (2270 kg) - with oil

Working Area: 78" x 3O" (approx.) - 2000x750 mm (exact)
Trolley Size: 30" x 30" (approx.) - 750x750 mm (exact)

Specifications are accurate to the best of our knowledge, subject to verification.

Time Interlock Synchronization​
Dynamic Breaking System

ADDITIONAL EQUIPMENT OPTIONS
Programmable Cut-Counter​
Feeding Systems
