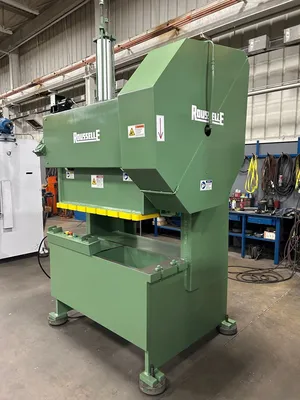

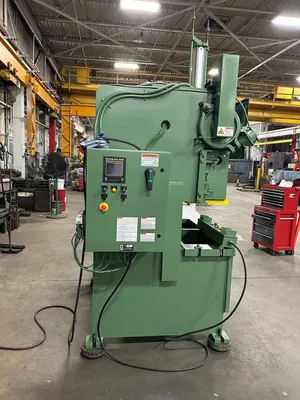

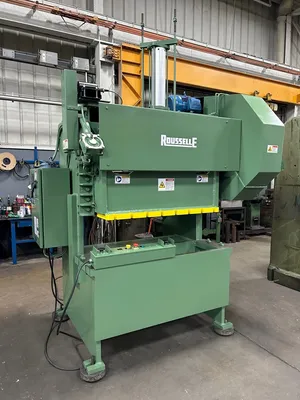

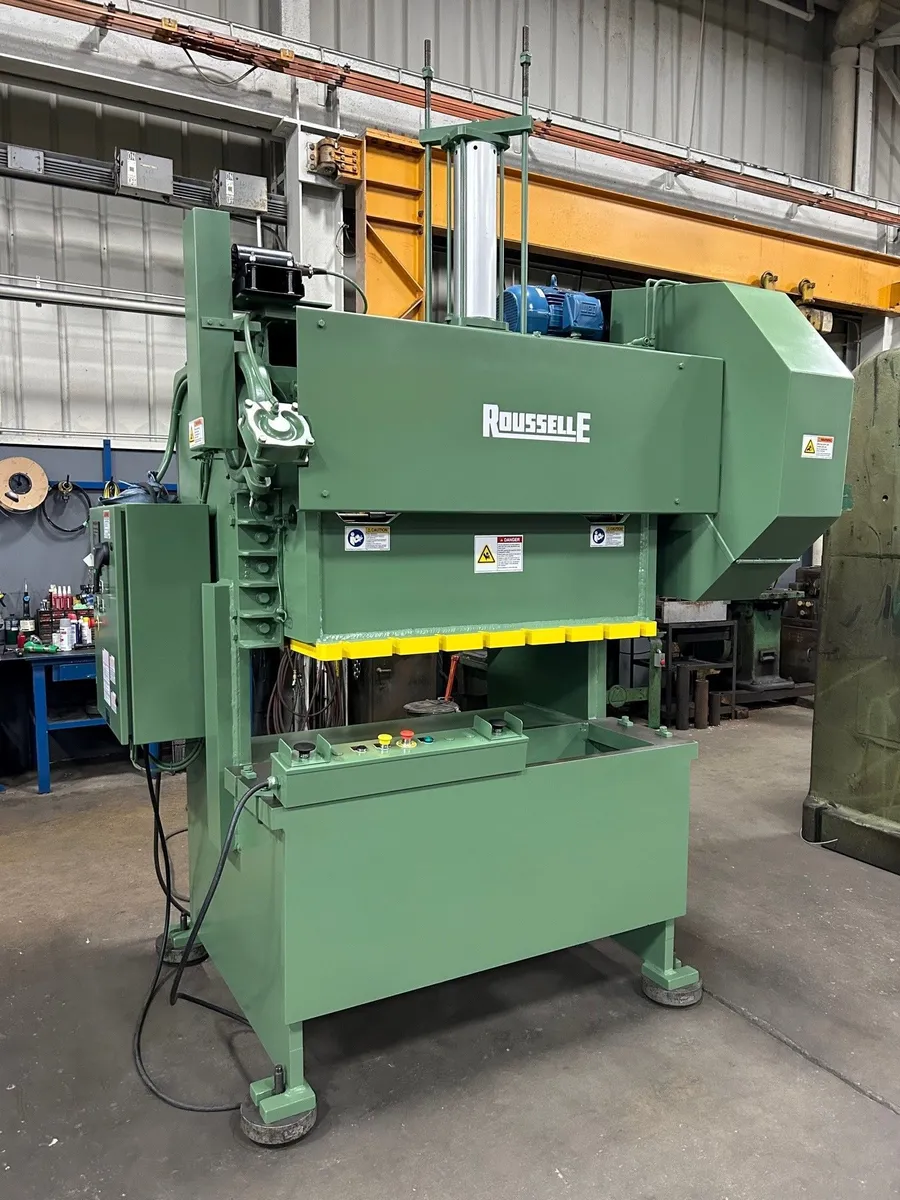

New 60 Ton Rousselle 6K60-F Gap Frame Single Crank Press - 2025
ConditionNew
1 available
New
60 Ton Rousselle, Model 6K60-F, Flywheel OBS Type, 2" stroke, 10.5" SH, 60" x 18" bed, NEW 2025
Capacity: 60 Tons (Rated Near Bottom Stroke)
Frame Type: OBS
Drive Type: Flywheel
Stokes Per Minute: 110 (fixed speed)
Stroke: 2"
Bed Size: 60" x 18"
Bolster Area: 60" x 18"
Bolster Thickness: 2"
Slide Area 49.5 x 16
Shut Height Above Bed 12.5
Shut Height Above Bolster 10.5
Slide Adjustment Type Manual
Slide Adjustments 3
Depth Of Throat 10
Clutch and Brake Type Air
Floor To Top Of Bolster 42
Floor To Top Of Bed 40
Width Of Opening Through Back 52.5
Equipped with a Bolster plate (not shown)
Link 5100 MPC Control
Single Operating Station
Automatic Oil Lubrication
5 HP Motor, 480V
Features
Plain bolster plate
Automatic lubrication system
Dual solenoid valve
Air switches for pneumatic control
Air Counterbalance System
45 Degree gibbing
Wrist-pin connection
Two-point crankshaft drive system
Air clutch & brake
All welded steel frame construction
Operator station with dual run, stop-on-top and emergency stop palm buttons
Supervisory Key selector switch for single, inch, or continuous stroke
Solid State Control
