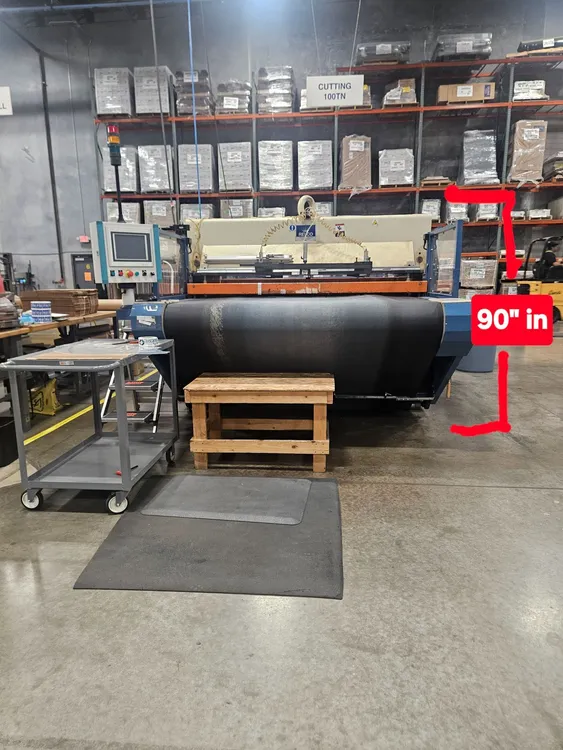

| Tonnage | 100 T | 90.719 t |
| Design | Beam Press | Beam Press |
| Cutting Head (F-B) | 80" | 203.2 cm |
| Cutting Head (L-R) | 60" | 152.4 cm |
| Stroke | 7.5" | 190.5 mm |
| Daylight | 9.5" | 241.3 mm |
| Dimensions | 100" L-R × 86" F-B × 75" H | 100" L-R × 86" F-B × 75" H |
| Weight | 18,000 | 18,000 |
General Specifications

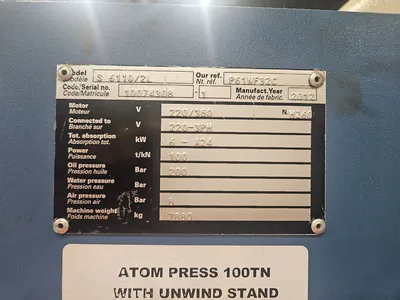

• Model: Atom S6110/2LCE
• Type: Hydraulic Die Cutting Press
• Pressing Force: 100 tons
• Design: 2-post downstroke type, floor-standing
• Year of Manufacture: 2012
Cutting Area & Movement
• Cutting Area (Beam): Approx. 80" (left-right) × 60" (front-back)
• Stroke of Beam: Approx. 7.5"
• Daylight (Max Opening): Approx. 9.5"
• Floor to Top of Bed: 41"
Power & Motor
• Motor: 7.5 HP, 1764 RPM
• Voltage: 230/460 V, 3-phase, 60 Hz
• Power Unit: Hydraulic pump
Dimensions & Weight
• Overall Dimensions: Approx. 100" L-R × 86" F-B × 75" H
• Weight: Approx. 18,000 lbs
Feeding Conveyor: (In and Out)
