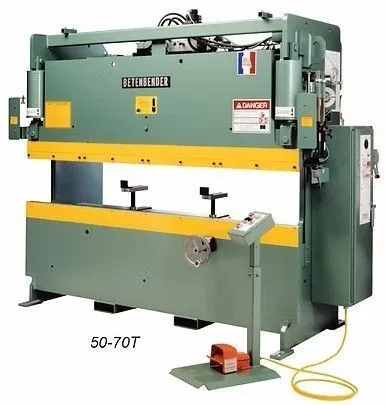

50 Ton Betenbender 6'-50 Hydraulic Press Brake

STANDARD FEATURES

2 Speed Ram
All Hydraulic Fluids Included
All Steel Construction
American Made Hoses and Fittings
American Made Valves and Motors
Bottom Time Delay
Clamp Type Backgauge- Manual Adjustable X, Y, & Z - 24”
Cylinders are Steel, Double Acting Piston Type with Hardened, Ground and Chromed Rods
Depth Stop with Digital Readout
Disconnect Switch
Front & Back of Bed Machined Smooth for Mounting of Gauges
Hardened Pins with Spherical Bearings for Alignment
Hour Meter
Hydraulic Pressure: 2500 psi
NEMA Electrics
Three Position Foot Switch by Linemaster

OPTIONAL FEATURES

24” Support Arms “Slide” Type
Keylock Switch
Light Curtain
Manual Front Reading Backgauge (24”) with Mechanical Readout
One Shot Lubrication
Operator Station Palm Control
Variable Tonnage Control
Work Light
208v Single Phase
Additional Foot Pedal with Keylock
Air Lift (Recommended for 4/Way Dies)
Angle Brackets (Plates) for Bottom
Angle Brackets (Plates) for Top
Automatic Lubrication
Bed Machining Angle Brackets
Bolt/Shim Kit for Leveling
CNC Backgauge
CNC Ram Stop
Die Holder/Riser
Die Rollover Bars (Recommended for 4/Way Dies)
Disappearing Stops
Dove Tails
Dual Calibration
Extended Support Arms (each)
Extra Length on Backgauge
Increase Stroke Length
Increase Throat Gap or Increase Open Height
Micrometer Precision Gauge Unit (2 Required)
Oil Cooler
Palm Buttons/Foot Control System (Hand buttons to preset height, stop and hold, foot to continue to shut height)
Power Front Reading Backgauge with 5 Station NC “GO-TO” Positioner on Pendant
Power Ram Adjustment with 5 Station NC “GO-TO” Positioner on Pendant
Ram Machining
Special Application Tooling
Special Paint Colors
T-Slots
