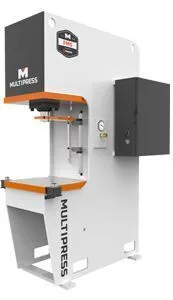

100 Ton Multipress FM-100 C Frame Hydraulic Press
ConditionNew
New
100 Ton Multipress FM-100, 18" stroke, 30" Daylight, Similar to the classic Denison FM-100 Gap Frame Hydraulic Press, Made in America
Available in Single Pump “FMS” style or Double Pump “FMD” style (faster approach speed, lower horsepower)
FMS Ram Speeds, IPM
Advance: 260 IPM
Press: 110 IPM
Return: 210 IPM
Motor HP @ 1800 RPM: 40 HP
FMD-A Ram Speeds, IPM
Advance: 545 IPM
Press: 45 IPM
Return: 525 IPM
Motor HP @ 1800 RPM: 30 HP
FMD-B Ram Speeds, IPM
Advance: 390 IPM
Press: 30 IPM
Return: 370 IPM
Motor HP @ 1800 RPM: 20 HP
Reservoir Capacity (gal): 150
STANDARD FEATURES
» Adjustable pressure from 20% to 100%
» Adjustable stroke
» Standard NFPA cylinder
» Pump mounted out of the oil for ease of service
» Manifold mounted valves
» Speed change limit switch
» Allen Bradley programmable logic controller
» Open motor
» NEMA- 12 control cabinet
» IEC fused disconnect
» 230/ 460 volts, 3 phase, 60 Hz
» Dual pushbuttons (anti-tie-down)
» Electric jog control for setup
» Pressure reversal control of ram
» Adheres to OSHA federal safety laws
OPTIONS & Accessories (Optional)
» Index Tables (available with 2, 3, 4, 6, 8, 12, 24 and 32 stations)
» Positive stops
» Bolster plates
» Guided tool plates/platens
» Pelleting or compaction accessories
» Table extensions
» Bottom knock-out rams
» Special opening or stroke
» Safety devices and controls
» Ergonomic palm buttons
» Touch screens
