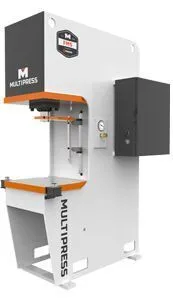

40 Ton Multipress FM-40 C Frame Hydraulic Press
ConditionNew
New
40 Ton Multipress FM-40, 12" stroke, 20" Daylight, Similar to the classic Denison FM-40 Gap Frame Hydraulic Press, Made in America
Available in Single Pump “FMS” style or Double Pump “FMD” style (faster approach speed, lower horsepower)
FMS Ram Speeds, IPM
Advance: 495 IPM
Press: 220 IPM
Return: 395 IPM
Motor HP @ 1800 RPM: 30 HP
FMD Ram Speeds, IPM
Advance: 810 IPM
Press: 100 IPM
Return: 7645 IPM
Motor HP @ 1800 RPM: 20 HP
Reservoir Capacity (gal): 90
STANDARD FEATURES
» Adjustable pressure from 20% to 100%
» Adjustable stroke
» Standard NFPA cylinder
» Pump mounted out of the oil for ease of service
» Manifold mounted valves
» Speed change limit switch
» Allen Bradley programmable logic controller
» Open motor
» NEMA- 12 control cabinet
» IEC fused disconnect
» 230/ 460 volts, 3 phase, 60 Hz
» Dual pushbuttons (anti-tie-down)
» Electric jog control for setup
» Pressure reversal control of ram
» Adheres to OSHA federal safety laws
OPTIONS & Accessories (Optional)
» Index Tables (available with 2, 3, 4, 6, 8, 12, 24 and 32 stations)
» Positive stops
» Bolster plates
» Guided tool plates/platens
» Pelleting or compaction accessories
» Table extensions
» Bottom knock-out rams
» Special opening or stroke
» Safety devices and controls
» Ergonomic palm buttons
» Touch screens
