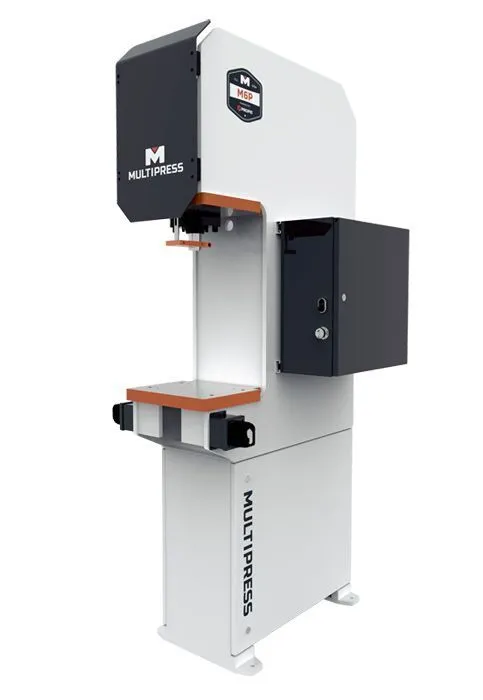

20 Ton Multipress M6P-20 C Frame Hydraulic Press
ConditionNew
1 available
New
20 Ton Multipress MSP-20, 12" stroke, 18" Daylight, 10 HP, Similar to the classic Denison M6P-15 Gap Frame Hydraulic Press, Made in America
IPM Return: 208 in/min.
Pump: 9
Motor, HP: 10
Cylinder:
Bore Diameter., in: 5
Rod Diameter, in: 3.5
Positive Stop Rod Dia., in: -
Maximum Pressure (PSI): 2038
Minimum Pressure (PSI): 408
Reservoir Capacity (gal): 23
Standard Machines Available in 2-4 weeks
STANDARD FEATURES
» Pressure regen (fast approach until work is contacted)
» PLC with 12 I/O
» Standard NFPA cylinder
» Vane pump mounted out of oil for ease of service
» NEMA-4 enclosure (no disconnect)
» Dual Opto-Touch controllers (anti-tie-down)
» Open drip proof motor
» Selector switch for jog up, jog down, run
» 230/460 volts, 3 phase, 60 Hz operating voltage
» 24 volt control
OPTIONS & Accessories (Optional)
» Index Tables (available with 2, 3, 4, 6, 8, 12, 24 and 32 stations)
» Positive stops
» Bolster plates
» Guided tool plates/platens
» Pelleting or compaction accessories
» Table extensions
» Bottom knock-out rams
» Special opening or stroke
» Safety devices and controls
» Ergonomic palm buttons
» Touch screens
