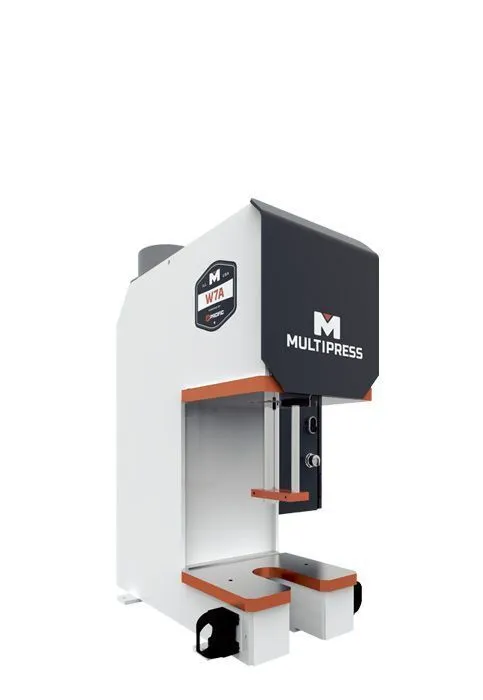

1 Ton Multipress, 6" stroke, 12" Daylight, 1 HP, Similar to the classic Denison W7A-1 Gap Frame Hydraulic Press, Made in America
IPM Return: 480 in/min.
Pump: 2/1
Motor, HP: 1
Cylinder:
Bore Diameter., in: 1.5
Rod Diameter, in: 1
Positive Stop Rod Dia., in: -
Maximum Pressure (PSI): 1131
Minimum Pressure (PSI): 400
Reservoir Capacity (gal): 5.5
Standard Machines Available in 2-4 weeks
STANDARD FEATURES
» Pressure regen (fast approach until work is contacted)
» PLC with 12 I/O
» Standard NFPA cylinder
» Double gear pump mounted out of the oil for ease of
service
» Pressure switch reversal with adjustable dwell down
timer
» Open drip proof motor
» NEMA-4 enclosure– no disconnect
» Dual Opto-Touch controllers (anti-tie-down)
» Selector switch for jog up, jog down, run
» U-slot in bed
» Available to operate with:
» 230/460 volts, 3 phase, 60 Hz
» 110 volts, single phase, 60 Hz
» 24 volt controls
CUSTOMIZABLE PRESS OPTIONS
» Pressing speed controls (adjustable)
» Knockout
» Adjustable time dwell down
» Load cell with digital readout
» Pressure transducer
» Mounting bench
» Oil to water cooling coils with water control
» Air to oil cooler with thermostat
» Customized daylight, stroke, and throat sizes
» Index table: 2, 3, 4, 6, 8, and 12 stop
» Servo index table with programmable stops
» Faster and slower ram speeds
» Light curtains and/or other guards
» Positive cylinder stop assembly
» Quality control lower limit switch (allows operator to
release buttons once ram is close to work to
guarantee full press stroke)
» Distance reversal switch
» Fused disconnect or circuit breaker
» U-slot or thru hole in bed
» TEFC motor
» Shuttle tables (manual and powered)
» Conveyor and pick & place
» Human Machine Interface (HMI) with custom screens
» Variable Frequency Drive (VFD), low energy solutions
» Automation Integration
» Other brands of PLC
