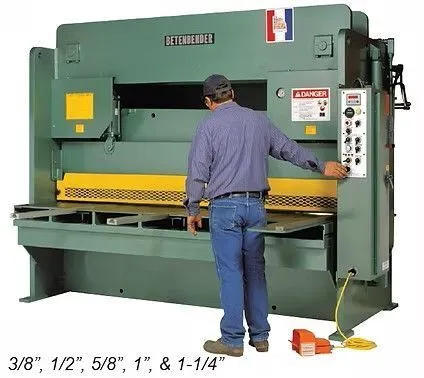

12' x 1/2" Betenbender 12-500 Hydraulic Shear
ConditionNew
New
12' x 1/2" Betenbender Model 10'-250, 36" FOPBG, Brand New, Made in America
Knives: 1" x 4"
Number of Holddowns: 20
Rake Angle per Rated Capacity: 1/2"
52 amps @ 208/230; 26 amps @ 460
STANDARD FEATURES
208-230/460v 3 phase
36” Power Backgauge with LED Readout Inch / Metric
4’ Squaring Arm with Inlaid Scale
All Hydraulic Fluids Included
All Steel Construction
American Made Hoses and Fittings
American Made Motor and Valves
Disconnect Switch
Hour Meter
Hydraulic Pressure: 2250 psi

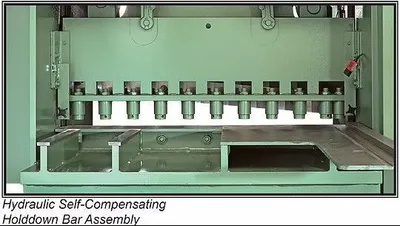

Hydraulic Self-Compensating Holddown Bar Assembly
Light Beam Gauge (Shadow Line)

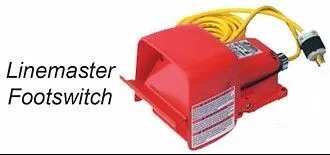

Linemaster Foot Switch
Manual Rapid Blade Gap Adjustment (3/8” and Larger)

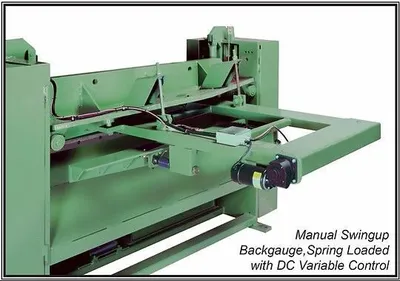

Manual Swingup Backgauge
NEMA Electrics
Power Adjust Variable Rake

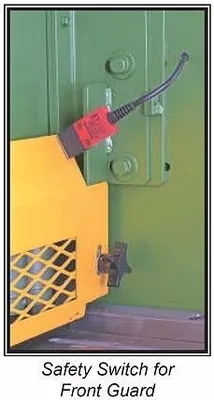

Safety Switch for Front Guard
Single Piece Top and Bottom, Shock Resistant Knives with Four Cutting Edges
OPTIONAL FEATURES

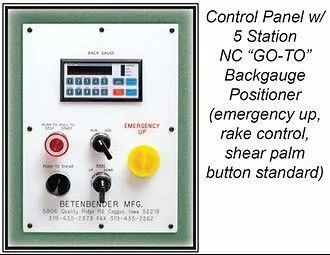

5 Station NC “GO-TO” Positioner
48” Support Arms/Front Gauges
Inlaid Scale (0-48”)
Disappearing Stops (Support Arms)
Solid Table Top - Bolt on Segments
Machined Solid Table Top Bed
Neoprene Holddown Caps
One Shot Lubrication
Automatic Lubrication
Oil Cooler
Ball Transfers
Angle Gauge
Electronic Stroke Control
Continuous Stroke (Includes Stroke Counter)
Stroke Counter
Independent Holddown Control
Extra Foot Pedal with Keylock Switch
Extended Squaring Arm (4’ Standard)
Flip Up Stops (Squaring Arm)
Left Hand Squaring Arm (4’)
Dovetail Slots or T-Slots
Keylock Switch
2 Position Power Blade Gap Adjustment (3/8” and Larger)
3 Position Power Blade Gap Adjustment (3/8” and Larger)
Pneumatic Sheet Support
208v Single Phase
Special Paint Colors
Other Electrics and Motors
Bolt/Shim Kit for Leveling
Harder Grade of High Carbon, High Chrome Knives
CSA
Phenolic Tabletop
BACKGAUGE OPTIONS
Manual Swing Up Backgauge (Standard)
Power Lift
Automatic Power Lift
Extra Length on Backgauge
12' x 1/2" Betenbender Model 10'-250, 36" FOPBG, Brand New, Made in America
Imperial
| Max Thickness | 0.5" |
| Length | 12' |
| Hyd/Mech | Hyd |
| Back Gauge | 36" |
| Power | 20 hp |
| SPM | 8 strokes/min. |
| Dimensions | 171.5" x 80" x 84" high |
| Weight | 32,000 |
Knives: 1" x 4"
Number of Holddowns: 20
Rake Angle per Rated Capacity: 1/2"
52 amps @ 208/230; 26 amps @ 460
STANDARD FEATURES
208-230/460v 3 phase
36” Power Backgauge with LED Readout Inch / Metric
4’ Squaring Arm with Inlaid Scale
All Hydraulic Fluids Included
All Steel Construction
American Made Hoses and Fittings
American Made Motor and Valves
Disconnect Switch
Hour Meter
Hydraulic Pressure: 2250 psi
Hydraulic Self-Compensating Holddown Bar Assembly
Light Beam Gauge (Shadow Line)
Linemaster Foot Switch
Manual Rapid Blade Gap Adjustment (3/8” and Larger)
Manual Swingup Backgauge
NEMA Electrics
Power Adjust Variable Rake
Safety Switch for Front Guard
Single Piece Top and Bottom, Shock Resistant Knives with Four Cutting Edges
OPTIONAL FEATURES
5 Station NC “GO-TO” Positioner
48” Support Arms/Front Gauges
Inlaid Scale (0-48”)
Disappearing Stops (Support Arms)
Solid Table Top - Bolt on Segments
Machined Solid Table Top Bed
Neoprene Holddown Caps
One Shot Lubrication
Automatic Lubrication
Oil Cooler
Ball Transfers
Angle Gauge
Electronic Stroke Control
Continuous Stroke (Includes Stroke Counter)
Stroke Counter
Independent Holddown Control
Extra Foot Pedal with Keylock Switch
Extended Squaring Arm (4’ Standard)
Flip Up Stops (Squaring Arm)
Left Hand Squaring Arm (4’)
Dovetail Slots or T-Slots
Keylock Switch
2 Position Power Blade Gap Adjustment (3/8” and Larger)
3 Position Power Blade Gap Adjustment (3/8” and Larger)
Pneumatic Sheet Support
208v Single Phase
Special Paint Colors
Other Electrics and Motors
Bolt/Shim Kit for Leveling
Harder Grade of High Carbon, High Chrome Knives
CSA
Phenolic Tabletop
BACKGAUGE OPTIONS
Manual Swing Up Backgauge (Standard)
Power Lift
Automatic Power Lift
Extra Length on Backgauge
