| Tonnage | 45 T | 40.823 t |
| Stroke | 2" | 50.8 mm |
| Shut Height | 9.75" | 247.65 mm |
| Bed (L-R) | 30" | 762 mm |
| Bed (F-B) | 18" | 457.2 mm |
| SPM Max | 430 strokes/min. | 430 strokes/min. |
| Power | 7.5 hp | 5.6 kW |
| Weight | 9800 lbs. | 9800 lbs. |

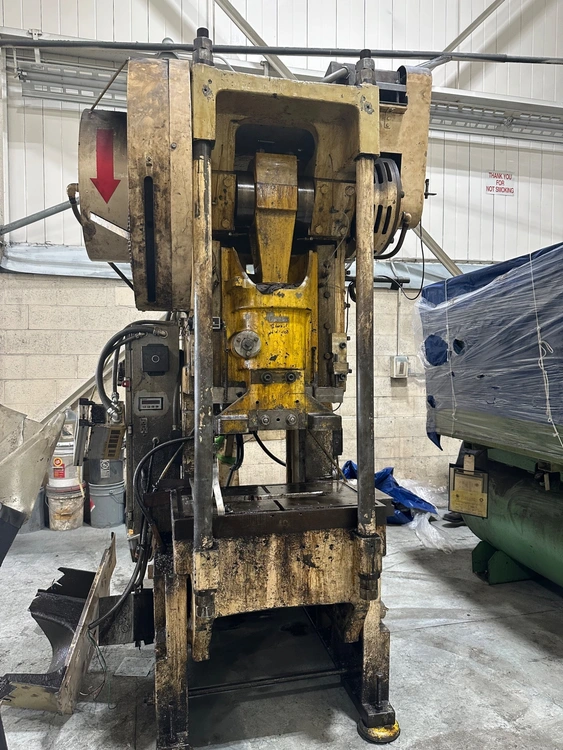

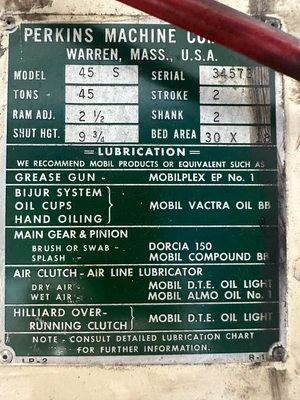

45 TON PERKINS #45-S O.B.I. PUNCH PRESS
Model no. 45-S
Bed area: 30" L-R x 18" F-B
Stroke: 2"
Ram Adjustment: 2.5"
Shank Hole: 2"
Shut Height: 9-3/4"
Weight approx. 9800 lbs.
Serial no. 34573
Stock no. 89520
FOB ELK GROVE VILLAGE, IL
(SPECIFICATIONS SUBJECT TO VERIFICATION)
