| Tonnage | 80 T | 72.575 t |
| Stroke | 2.76" | 70.104 mm |
| Shut Height | 14.58" | 370.33 mm |
| Bed (L-R) | 39.4" | 1,000.8 mm |
| Bed (F-B) | 21.67" | 550.42 mm |
| SPM Max | 120 strokes/min. | 120 strokes/min. |
| SPM Min | 50 strokes/min. | 50 strokes/min. |
| Weight | 13,000 lbs | 13,000 lbs |

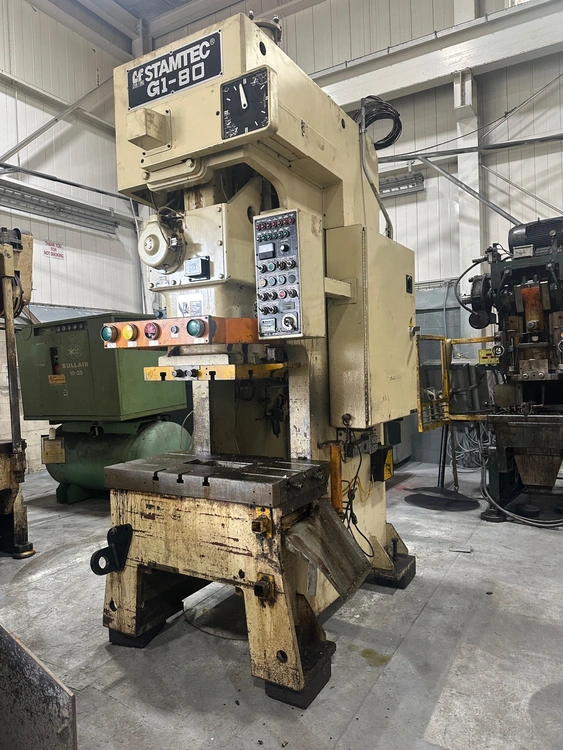

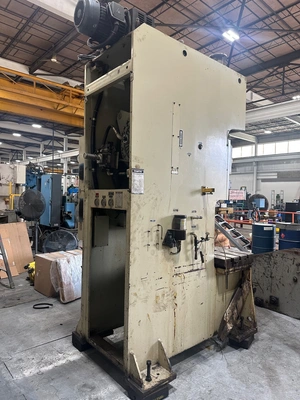

USED 80 TON STAMTEC G1-80 GAP FRAME PUNCH PRESS
Model G1-80
Bed area: 39.4" L-R x 21.67" F-B
Slide area: 22.06" L-R x 16.55" F-B
Stroke: 2.76"
Shut height: 14.58"
SPM approx.: 50-120 SPM
Slide adjustment: 3.15"
Weight approx. 13,000 lbs.
Serial no. S91022
Stock no. 89518
FOB ELK GROVE VILLAGE, IL
(SPECIFICATIONS SUBJECT TO VERIFICATION)
This equipment is currently unavailable. Similar equipment available now is shown below.
