Equipment
Hydraulic Presses
Heated Platen Press and Laminating Press

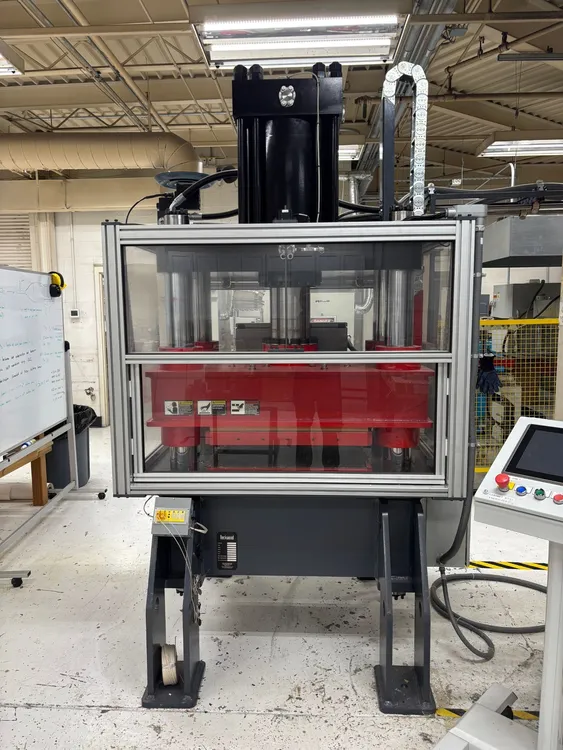

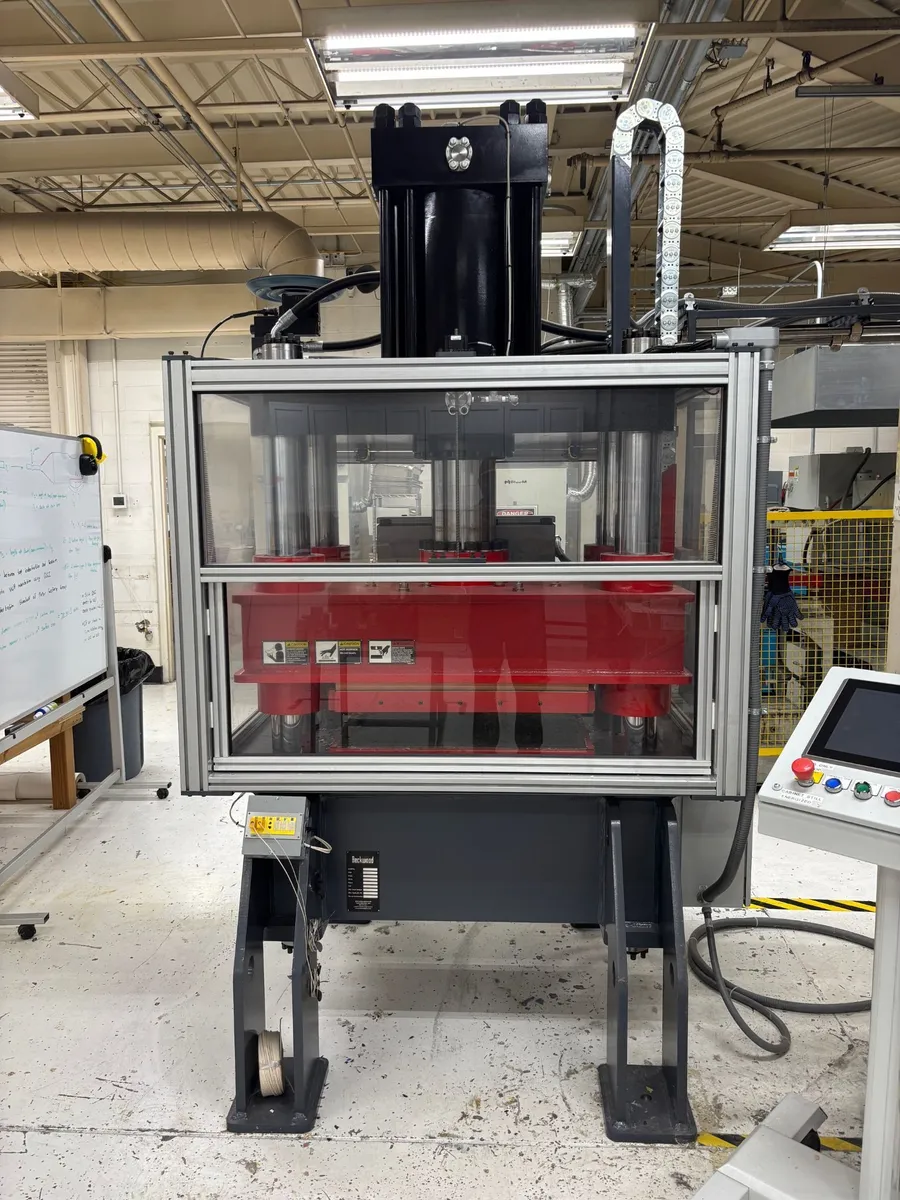

250 Ton Beckwood Heated Platen Press - New 2023

250 Ton Beckwood Heated Platen Press - New 2023

Sell Your BECKWOOD DWN/4PS
847-640-8600
Sales@kemplermachinery.com
ConditionUsed
1 available
Sell Your BECKWOOD DWN/4PS

Overview

Type:
Heated Platen Press and Laminating Press
Manufacturer:
BECKWOOD
Model:
DWN/4PS
Year:
2023
Stock #:
89515
Status:
For Sale
Serial #:
38578

Description

250 Ton Beckwood Model 4P250F2828, 28" x 28" Heated Platens, 12" str., 12" DL, New 2023

Tonnage250 T226.796 t
Heating ElementElectricElectric
Design4 Post4 Post
Heated Platen (L-R)28"711.2 mm
Heated Platen (F-B)28"711.2 mm
Stroke12"304.8 mm
Daylight12"304.8 mm

MAX TONNAGE: 250 TONS
HEATED PLATENS: 28" x 28"
MAX. Temperature: 450 degrees
STROKE: 12"
DAYLIGHT: 12"
PRESSING SPEED: 1-28 INCH/MIN
RETRACTION SPEED: 1-37 INCH/MIN
POSITION CONTROLLED PRESS
HEATED PLATENS
50HP MOTOR
100 GALLON HYD FLUID RESERVOIR
PEDESTAL TOUCHSCREEN CONTROL

Pressing Speed: 1-28 IPM
Return Speed: 1-37 IPM

Press Weight: 7500 lbs.
Power Unit Weight: 5500 lbs.
Press Height: 105"
Power Height: 99"

Press was installed in 2024. Has less than 150 hours of use.

All machinery specifications must be independently verified by buyer.

Specifications are accurate to the best of our knowledge, subject to verification.

Touchscreen Pedestal Controls

50 HP Motor (total system: 51.5 HP) 230 Volts (Full Load Amperage: 204 Amps - Disconnect Size: 300 Amps)
