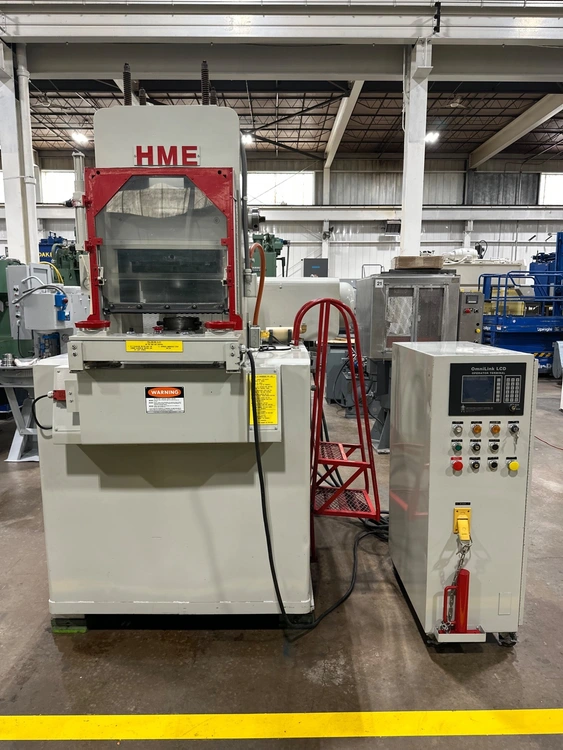

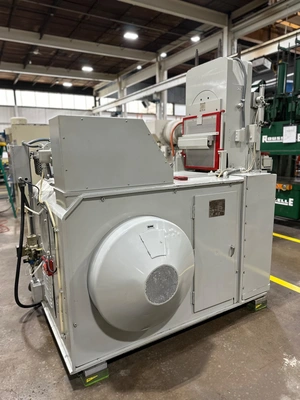

Used 400 Ton Verson/HME Model K-360 Knuckle Joint High Speed Precision Coining, Embossing, Forming & Sizing Press
Sold

Used 400 Ton Verson/HME Model K-360 Knuckle Joint High Speed Precision Coining, Embossing, Forming & Sizing Press

Sell Your HME K-360
Coining, Knuckle Joint, and Embossing Press
Manufacturer:
HME
Model:
K-360
Stock #:
29534
Serial #:
16462
400 Ton Verson/HME, 2-1/8" str., 17" SH, 17" x 17" bed, 45-200 SPM, #29534
Tonnage400 T362.874 t
Stroke2.125"53.975 mm
Shut Height17"431.8 mm
Bed (L-R)17"431.8 mm
Bed (F-B)17"431.8 mm
Clutch TypeAA
SPM Min45 strokes/min.45 strokes/min.
SPM Max200 strokes/min.200 strokes/min.
Dimensions84" L-R x 96" F-B x 90" H (Press); 30" L-R x 36" F-B x 60" H (Panel)84" L-R x 96" F-B x 90" H (Press); 30" L-R x 36" F-B x 60" H (Panel)
Weight16,000# (Press); 400# (Control)16,000# (Press); 400# (Control)

USED 400 TON VERSON/HME MODEL K-360 KNUCKLE JOINT HIGH SPEED PRECISION
COINING, EMBOSSING, FORMING AND SIZING PRESS
AIR CLUTCH AND HIGH SPEED HYDRAGRIP BRAKE
Air Counterbalances - Bottom Ejector
Low Profile Underdriven Design
Stroke: 2-1/8"
Slide Adjustment: .562" (Manual)
Shut Height (S.D.A.U.): 17"
Area Of Bed (Nominal): 17" L-R x 17" F-B
Area Of Slide (Nominal): 17.5" L-R x 12.5" F-B
Distance Between Side Frames: 17.5" L-R
Floor To Top Of Bed: 46"
S.P.M.: 45 - 200 Infinitely Variable
Weight Approx. 16,000# (Press); 400# (Control)
Overall Dimensions Approx. 84" L-R x 96" F-B x 90" H (Press)
30" L-R x 36" F-B x 60" H (Panel)
Serial No. 16462
Stock No. 29534
FOB ELK GROVE VILLAGE, IL

(SPECIFICATIONS SUBJECT TO VERIFICATION)

Specifications are accurate to the best of our knowledge, subject to verification.

Press Mounted Operator Bar With Dual Palm Buttons, Die Clean Selector,
Bottom Ejector Selector & Emergency Stop Button
Mechanical Safety Gate
Tonnage Indicator
Automatic Recirculating Lubrication System
Omni Link 5000 PLC Press Control System (Software version 2.39)
With LCD Operator Terminal To Program & Monitor All Vital Press Functions & Conditions:
i.e. Press (Flywheel) Speed, Crankshaft Position, Clutch Brake, Tonnage Vs. Crankshaft Angle,
Stroke Mode (Inch-Single-Multi & Continuous) Ejector Function, etc.
Up To 105 Job Program Storage & Retrieval W/Batch, Quality & Order Counter
Communications Port For Interfacing To Electronic Feed Devices etc.
15 HP 1750 RPM 460/3/60 Motor Driven Variable Speed Reducer
(SMC-2 Allen Bradley Solid State Motor Controller)
1/4 HP 1670 RPM 460/3/60 Speed Adjustment Motor
1/4 HP 1670 RPM 460/3/60 Lubrication Pump Motor
