| Max Thickness | 1/4" | 6.35 mm |
| Length | 10' | 3 m |
| Hyd/Mech | Hyd | Hyd |
| Back Gauge | 36" | 914.4 mm |
| Power | 10 hp | 7.5 kW |
| SPM | 21 - full width cut; 32 - half width cut | 21 strokes/min. |
| Dimensions | 140" L-R x 76" F-B x 86" H | 140" L-R x 76" F-B x 86" H |
| Weight | 15,000 lbs. | 15,000 lbs. |

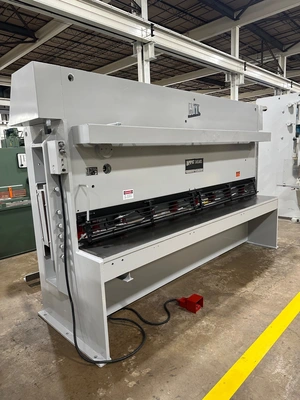

USED 10 FT. X 1/4" HTC #250-10AS HYDRAULIC SHEAR
Model no. 250-10A
Capacity: 10' x 1/4" mild steel
Length of knives: 10'4"
Distance between housings: 124"
Rake angle: 11/32"
Holddowns: 9
Floor to top of bed: 32"
S.P.M. approx.: 21 - full width cut
32 - half width cut
Speeds approx.: 207"/minute down
276"/minute up
Weight approx. 15,000 lbs.
Overall dimensions approx. 140" L-R x 76" F-B x 86" H
Serial no. A89156
Stock no. 29511
FOB ELK GROVE VILLAGE, IL
36" front operated power back gauge with
drum switch forward - reverse & readout
6'6" squaring arm
(2) stock support arms
Electric foot switch
Selector switches for start – stop – manual – auto
Toggle switch for on - hold
Stroke length adjustment
Blade clearance adjustment
Hydraulic pump, driven by
10 HP 1740 RPM 230/460/3/60 motor
This equipment has been sold. Similar equipment available now is shown below.
