| Max Thickness | 0.236" | 5.9944 mm |
| Max Thickness (gauge) | 4 gauge | 4 gauge |
| Stock Dimension (X) | 8.5" | 215.9 mm |
| Stock Dimension (Y) | 8.5" | 215.9 mm |
| Dimensions | 38.58" x 36.61" x 55.1" H | 38.58" x 36.61" x 55.1" H |
Dake Part Number 960401 Dake DLN-6220V Notcher

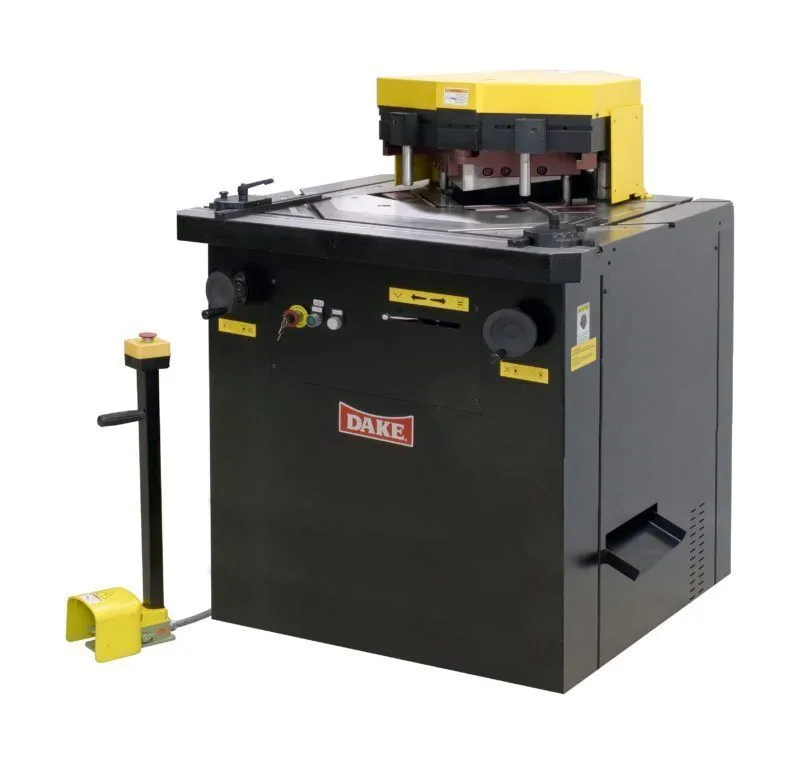

New Dake DLN-6220V Hydraulic Sheet Metal Notcher
Model Number: DLN-6220V
Material Thickness: 4 Ga. Maximum
Controls: Foot Pedal Switch
Operation: Handwheels & Foot Switch
Motor: 4 HP, 3 Phase 220V
Strokes Per Minute: 15 Stokes/Minute Maximum
Angle: 30° - 140°
Max. Notch Dimensions: 8.5" x 8.5"
Table Dimensions: 37.4" x 31"
Overall Dimensions: 38.58" x 36.61" x 55.1" H
FEATURES:
Variable angle
Capable of notches from 30 to 140 degrees in mild steel and up to 6mm in thickness
15 Strokes per minute
24 Ton Capacity 4 Ga. Mild Steel
Cutting length 8.5" x 8.5"
Table dimension of 37.4" x 31.2"
Long 8.5″ blades
Hand wheel adjusted blade angle
Foot pedal controlled notching stroke
STANDARD EQUIPMENT:
Foot pedal switch
Long 8.5″ blades
