Equipment
Fabricating
Vertical Band Saw

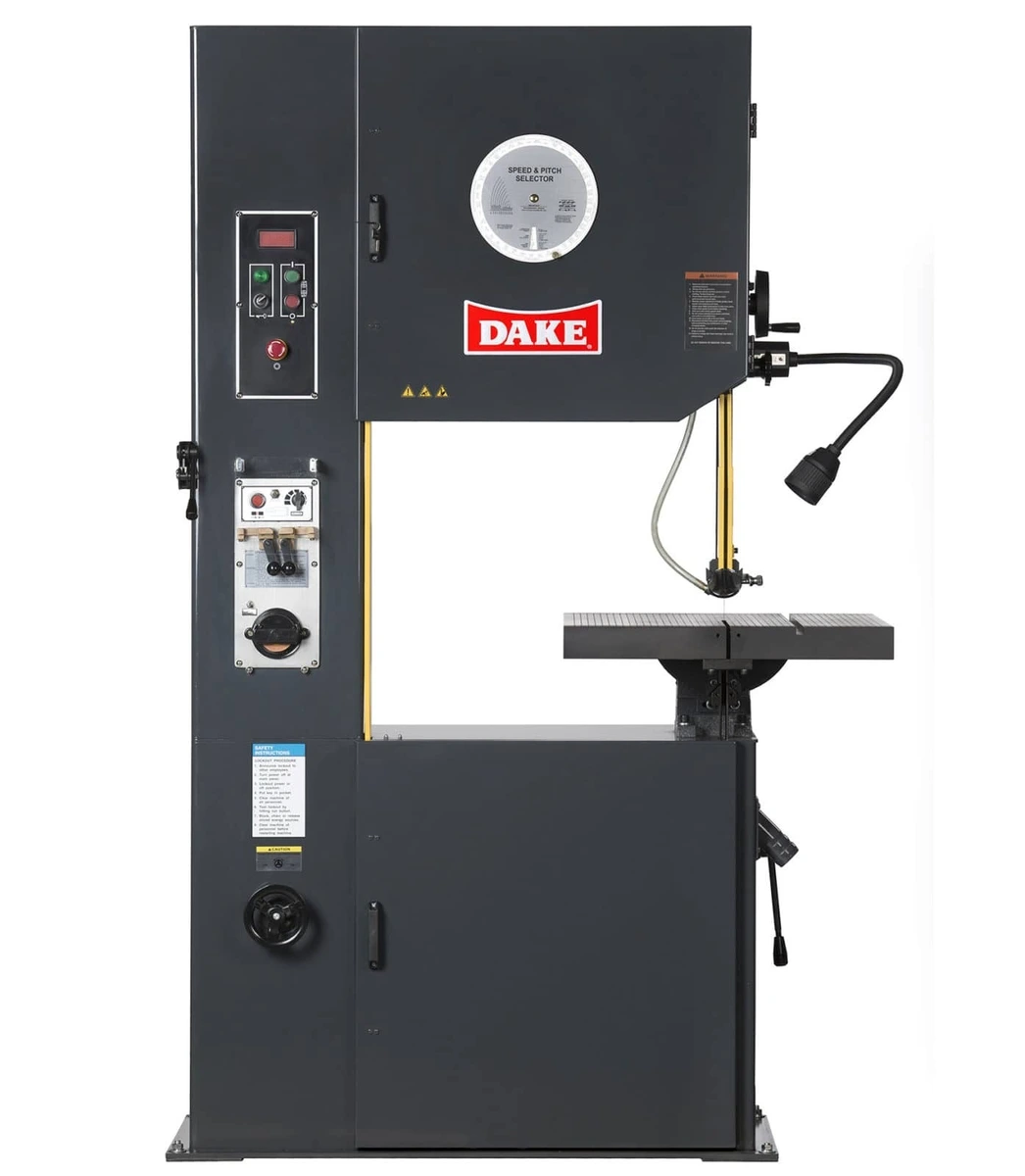

New Dake V-26E Vertical Bandsaw with Power Feed Table
Unavailable

New Dake V-26E Vertical Bandsaw with Power Feed Table

Sell Your DAKE V-26E
Vertical Band Saw
Manufacturer:
DAKE
Model:
V-26E
Condition:
New OEM Stock
26” Dake Model V-26E, 26” Throat, Electronic Power Fed Table, 13” Max. work height, 23-1/2” 27-1/2” Table, 3 HP, standard 220 Volt (440 Volt Option)
Throat26"660.4 mm
Work Height13"330.2 mm
Power3 hp2.2 kW
Blade Width1/4" - 1"25.4 mm
Blade Length184.25"4,679.9 mm
FPM550-5000 FPM550-5000 FPM
Dimensions51" x 32" x 84" H51" x 32" x 84" H
Weight1540 lbs.1540 lbs.

New Dake V-26 Vertical Bandsaw
Model Number: V-26E
Motor: 3 HP 220V
Blade Width: 1/4" - 1"
Blade Length: 184-1/4"
Blade Speed: 550-5000 FPM
Worktable Travel Distance: 12"
Band Wheels Number: 2
Band Wheels Size: 26-1/4"
Throat Size (Band To Column): 26"
Maximum Work Height: 13"
Work Table Dimensions: 23-1/2" x 27-1/2"
Worktable Tilt: 45° R / 10° L
Worktable Height: 39-3/8"
Machine Height: 84"
Machine Floor Space: 51" x 32"
Weight: 1540 lbs.

Specifications are accurate to the best of our knowledge, subject to verification.

FEATURES:
Variable Speeds with 50 – 415 feet per minute in low range and 550 – 5,000 feet per minute in the high range
Electronic Power Fed Table. Torque motor driven with rack and pinion
Heavy cast table with chip clearance grooves and back stop bar
Low voltage controls, main power lock out switch and door limit switches
Rip Fence, miter gauge, circle cutting attachment
Built in blade welder with grinder and shear to easily fix broken blades
Blade speed / pitch selector guide and digital tachometer
Work light comes standard for increased visibility

STANDARD EQUIPMENT:
Heavy Duty Frame
Rip Fence
Work Light
Blade Welder / Grinder / Shear
Speed Indicator (Digital Readout)
Blade Tension Indicator
Digital Tachometer
Chip Blower & Blade Brush
(1) Standard Blade

MODEL OPTIONS:
440V External Transformer
77178 – Mist System
