Equipment
Fabricating
Vertical Band Saw

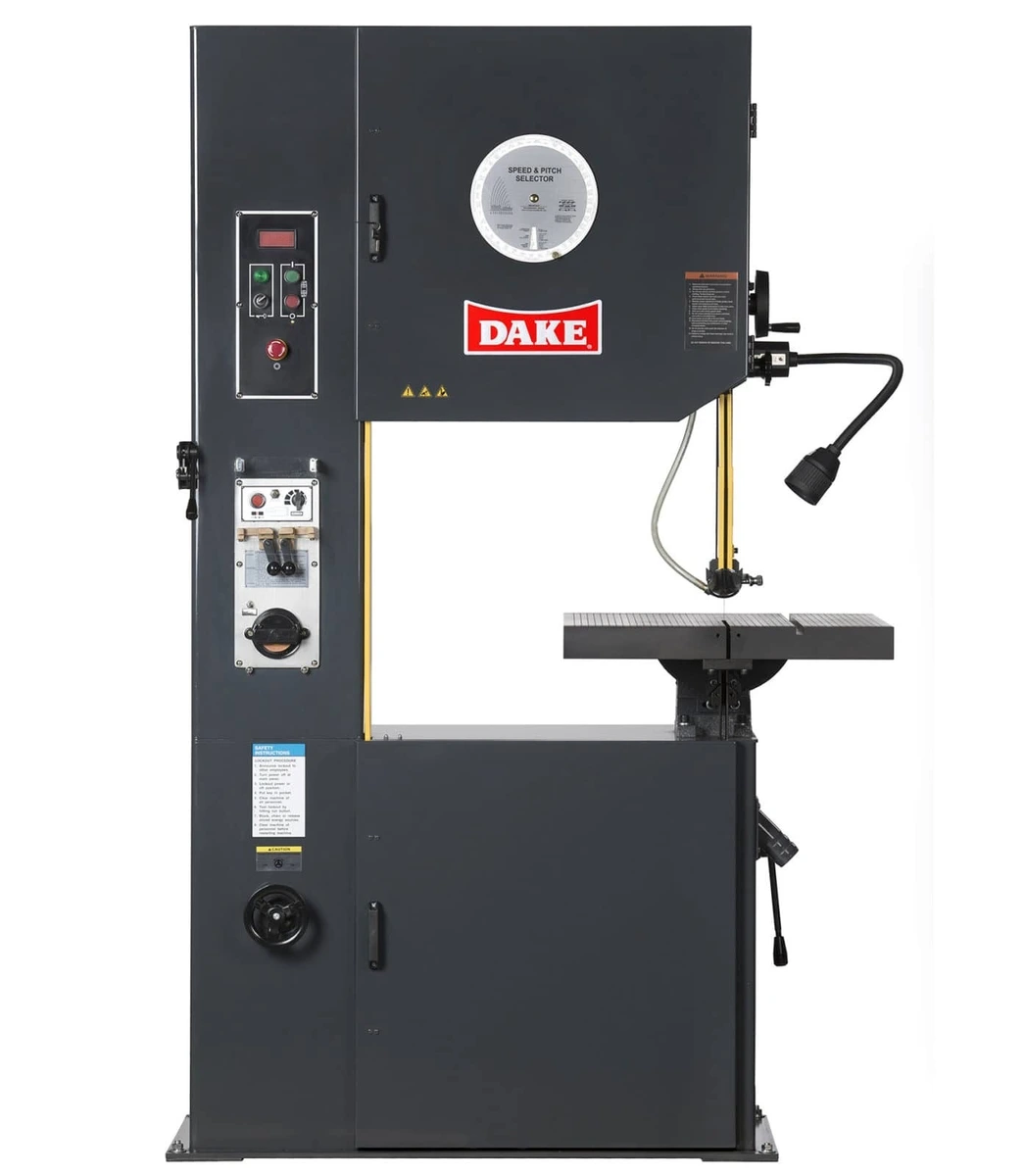

New Dake V-26 Vertical Bandsaw
Unavailable

New Dake V-26 Vertical Bandsaw

Sell Your DAKE V-26
Vertical Band Saw
Manufacturer:
DAKE
Model:
V-26
Condition:
New OEM Stock
26” Dake Model V-26, 26” Throat, 13” Max. work height, 23-1/2” 27-1/2” Table, 3 HP, standard 220 Volt (440 Volt Option)
Throat26"660.4 mm
Work Height13"330.2 mm
Power3 hp2.2 kW
Blade Width1/4" - 1"25.4 mm
Blade Length184.25"4,679.9 mm
FPMLow 50-415 FPM / High 550-5000 FPMLow 50-415 FPM / High 550-5000 FPM
Dimensions51" x 32" x 84" H51" x 32" x 84" H
Weight1540 lbs.1540 lbs.

Dake Part Number 987031-2 Dake V-26 Saw
New Dake V-26 Vertical Bandsaw
Model Number: V-26
Motor: 3 HP 220V
Blade Width: 1/4" - 1"
Blade Length: 184-1/4"
Blade Speed: Low 50-415 FPM / High 550-5000 FPM
Band Wheels Number: 2
Band Wheels Size: 26-1/4"
Throat Size (Band To Column): 26"
Maximum Work Height: 13"
Work Table Dimensions: 23-1/2" x 27-1/2"
Worktable Tilt: 45° R / 10° L
Worktable Height: 39-3/8"
Machine Height: 84"
Machine Floor Space: 51" x 32"
Weight: 1540 lbs.

Specifications are accurate to the best of our knowledge, subject to verification.

FEATURES:
Variable Speeds with 50 – 415 feet per minute in low range and 550 – 5,000 feet per minute in the high range
26″ saw for intermediate-size workpieces
Adjustable Table
Digital speed indicator for clear readout
Work light comes standard for increased visibility
Low voltage controls, main power lock out switch and door limit switches
Heavy cast, tilting table with chip clearance grooves
Built in blade welder with grinder and shear to easily fix broken blades

STANDARD EQUIPMENT:
Heavy Duty Frame
Rip Fence
Work Light
Blade Welder / Grinder / Shear
Speed Indicator (Digital Readout)
Blade Tension Indicator
Digital Tachometer
Chip Blower & Blade Brush
(1) Standard Blade

MODEL OPTIONS:
440V External Transformer
77178 – Mist System
