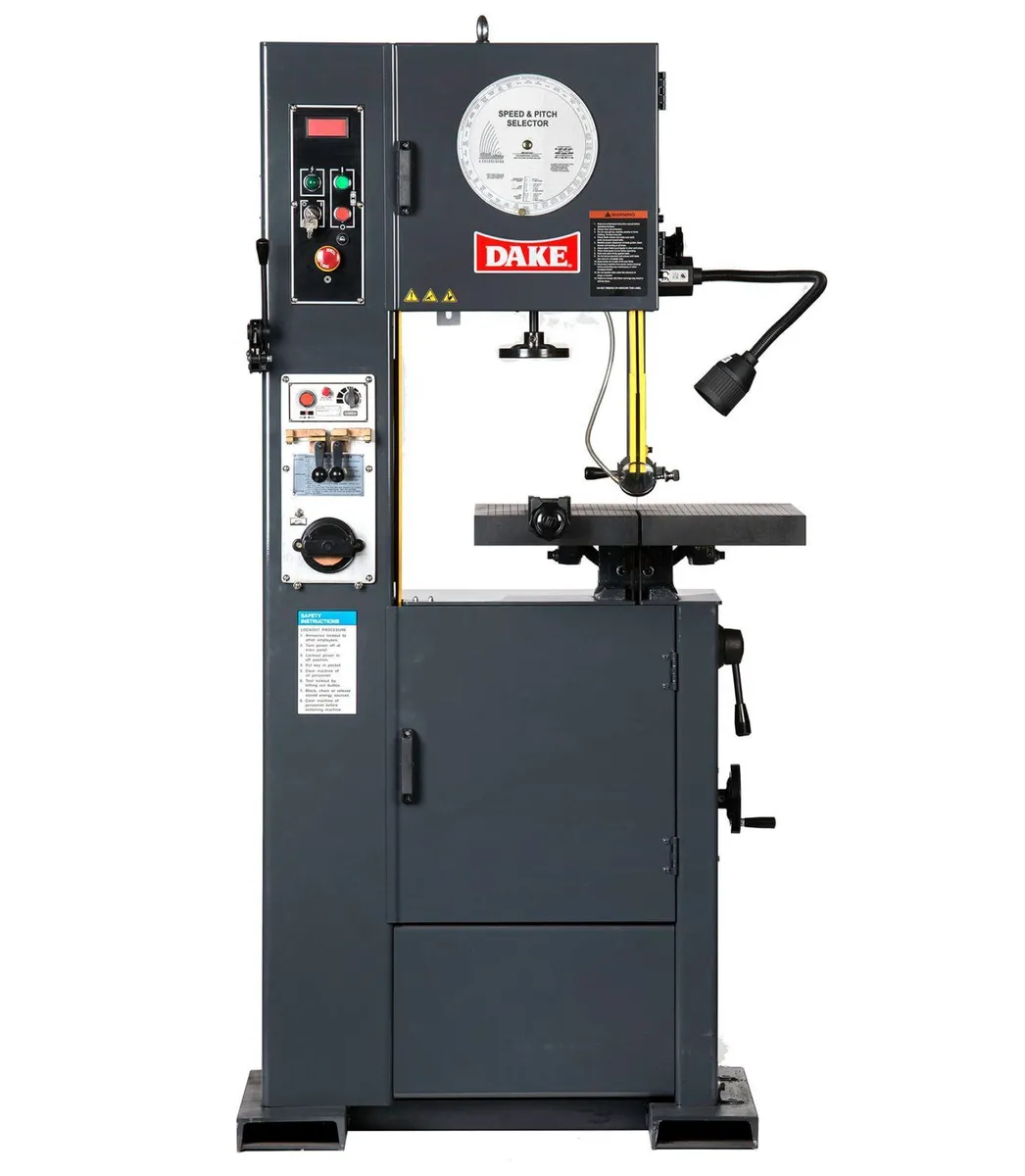

New Dake V-16 Vertical Bandsaw

Vertical Band Saw
Manufacturer:
DAKE
Model:
V-16
Condition:
New OEM Stock
16” Dake Model V-16, 15-1/2” Throat, 16”, 10” Max. work height, 21-1/2” x 24” table, 2 HP, standard 220 Volt (440 Volt Option)
Throat15.5"393.7 mm
Work Height10"254 mm
Power2 hp1.5 kW
Blade Width1/8" - 5/8"15.875 mm
Blade Length123.5"3,136.9 mm
FPM82 - 395082 - 3950
Dimensions37" x 26-1/2" x 72-1/2" H37" x 26-1/2" x 72-1/2" H
Weight904 lbs.904 lbs.

New Dake V-16 Vertical Bandsaw
Dake Part Number 987030-2 Dake V-16 Saw
New Dake V-16 Vertical Bandsaw
Model Number: V-16
Motor: 2 HP 220V
Blade Width: 1/8" - 5/8"
Blade Length: 123-1/2"
Blade Speed: 82 - 3950 FPM
Band Wheels Number: 2
Band Wheels Size: 16"
Throat Size, Band To Column: 15-1/2"
Maximum Work Height: 10"
Work Table Dimensions: 21-1/2" x 24"
Worktable Tilt: 15° R / 12° L; 8° F/B
Worktable Height: 39"
Machine Height: 72-1/2"
Machine Floor Space: 37" x 26-1/2"
Weight: 904 lbs.

Specifications are accurate to the best of our knowledge, subject to verification.

FEATURES:
Heavy duty bandsaw for large production pieces
Extra large, multi-tilting worktable
Variable speeds for high efficiency cutting
Welder, grinder, and cutter
Door interlocks
Digital Tachometer
Blade speed and pitch selector
Updated blade guarding

STANDARD EQUIPMENT:
Heavy-duty frame
Tilting Worktable
Blade welder, grinder, and cutter
Work lamp
Chip blower
Door interlocks
Digital Tachometer
Blade speed and pitch selector
Upgraded blade guarding

MODEL OPTIONS:
440V External Transformer
77178 – Mist System
