| Tonnage | 300 T | 272.156 t |
| Design | 4 Post | 4 Post |
| Up or Downstroke? | Downstroke | Downstroke |
| Stroke | 30" | 762 mm |
| Daylight | 48" | 1,219.2 mm |
| Bed (L-R) | 60" | 1,524 mm |
| Bed (F-B) | 55" | 1,397 mm |
| IPM Pressing | 8 in/min. | 20.3 cm/min. |
| IPM Closing | 33 in/min. | 83.8 cm/min. |
| Power | 15 hp | 11.2 kW |

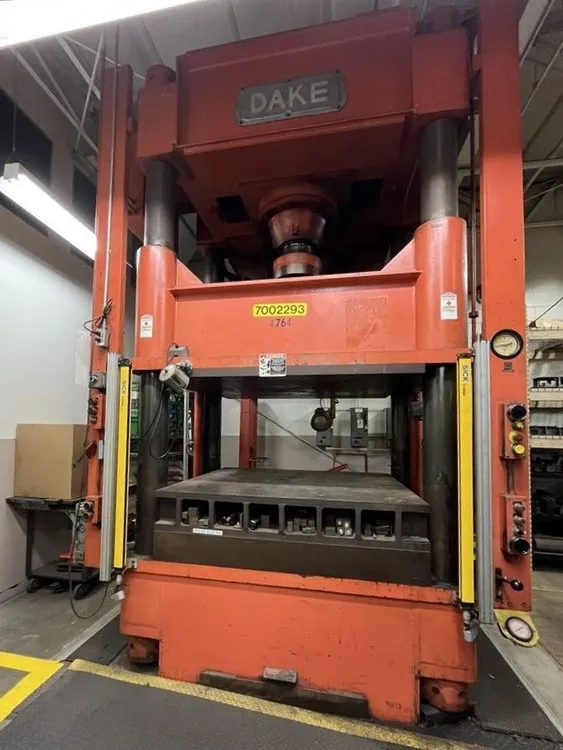

USED 300 TON DAKE #18-535 4-POST DIE TRYOUT HYDRAULIC PRESS
4 post type; downstroke
Down Stroke Capacity: 300 Ton
Up Stroke Capacity: 115 Ton
Stroke Length: 30"
Daylight Opening: 48" Max.
Distance Between Posts: 60" L-R x 55" F-B
Bed Area (Nominal): 60" L-R x 55" F-B
Speeds Approx.: 33"/Minute Advance
8"/Minute Pressing
20"/Minute Breakaway
86"/Minute Return
Pin Pressure Pad: 27.3" x 54"
Serial Number: 175458
Stock no. 29501
AS IS, WHERE IS, WISCONSIN SHIPPING POINT
(SPECIFICATIONS SUBJECT TO VERIFICATION)
Dayton Rogers 2C-24-10 Die Cushion
Bolster Plate
Die Cushion Spacer
Electric Control Assembly
Surge Tank
Safety Valve
Regulator
Hydraulic Pumping Unit, Driven By
15 HP 1800 RPM Motor
