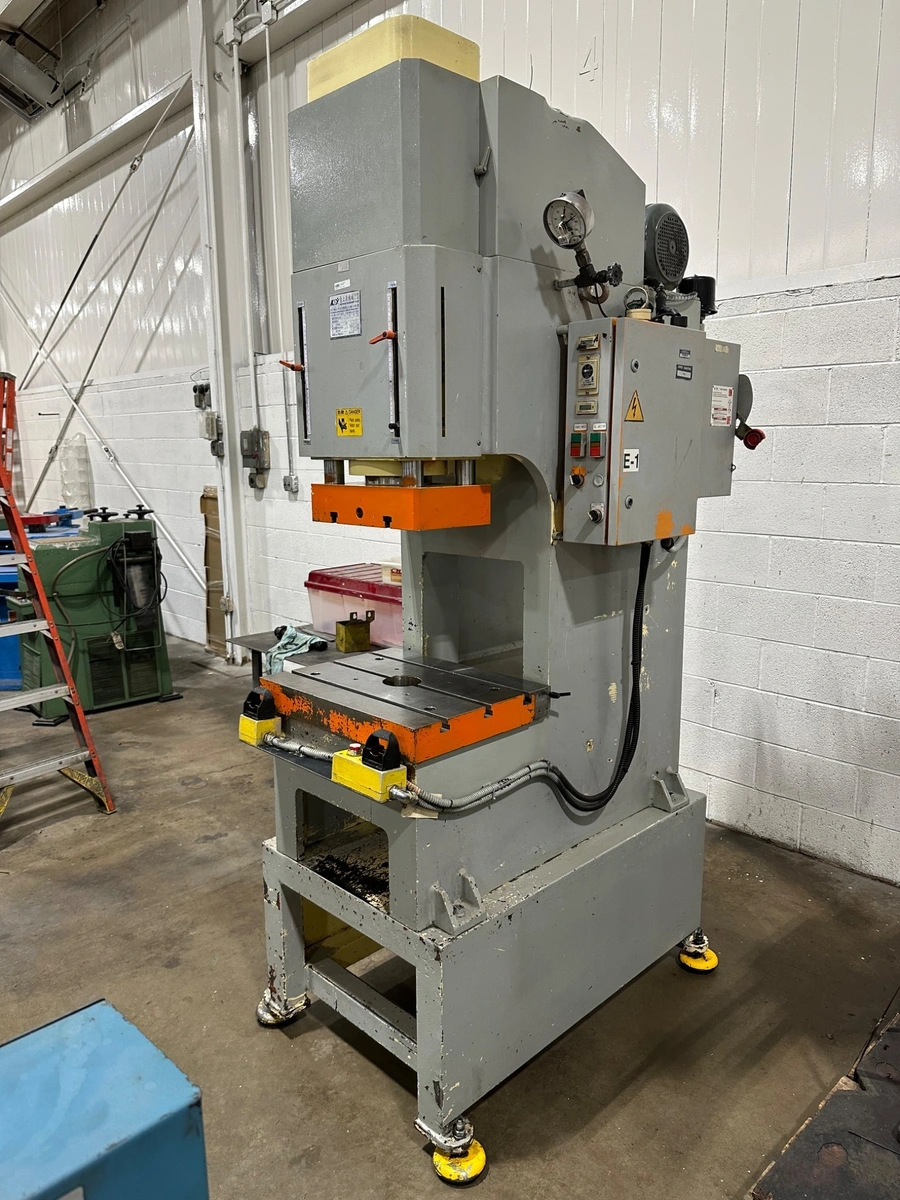

Used 40 Ton King Shang #KSY400H Hydraulic C Frame Press

Used 40 Ton King Shang #KSY400H Hydraulic C Frame Press
New 2007
Model KSY400H, floor standing
Bed area: Approx. 23" L-R x 18" F-B (T-slotted)
4 post guided slide: Approx. 16" L-R x 10" F-B (T-slotted)
Stroke: Approx. 0 - 10" maximum
Daylight opening (total): Approx. 16" maximum
Throat depth: Approx. 9.5"
Floor to top of bed: 41"
Power unit: Hydraulic pump, driven by
5 HP 1740 RPM 230/460/3/60 motor
Speeds approx.: 401"/minute closing
47"/minute pressing to 12.4 tons
330"/minute return
Weight approx. 5,200 lbs.
Overall dimensions approx. 38" L-R x 55" F-B x 99" H
Serial no. 06114
Stock no. 29494
FOB ELK GROVE VILLAGE, IL
