| Tonnage | 66 T | 59.874 t |
| Stroke | 3.5" | 88.9 mm |
| Bed (L-R) | 35.6" (bolster) | 904.24 mm |
| Bed (F-B) | 21.7" (bolster) | 551.18 mm |
| Power | 7.5 hp | 5.6 kW |
| Weight | 11,000 lbs. | 11,000 lbs. |

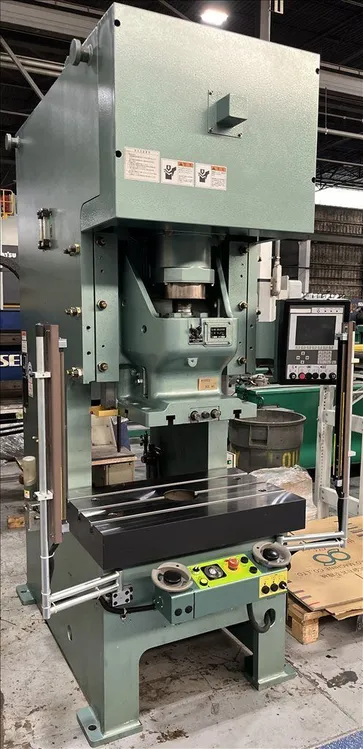

USED 66 TON KOMATSU OBS60-34BM GAP FRAME PRESS
New 2009
Max. Capacity: 66 Ton
Limit of Capacity: 0.2"
Slide Strokes: 3.5"
Variable Speed Range: 75-150 SPM
Die Height: 11.8"
Slide Adjustment: 2.8"
Slide Dimensions: 19.7" x 15.7"
Diameter of Shank Hole: 2"
Bolster: 35.4" W x 21.7" D x 5.1" T
Motor Output: 7.5 HP
Weight Approx.: 11,000 Lbs
Serial No. 15403
Stock No. 29479
FOB Elk Grove Village, IL AREA
(SPECIFICATIONS SUBJECT TO VERIFICATION)
SIT-4 Control
This equipment is currently unavailable. Similar equipment available now is shown below.
