| Tonnage | 40 T | 36.287 t |
| Overall Length | 52" | 1.3 m |
| Between Housings | 38" | 1 m |
| Type | HYD | HYD |
| Material Length | 52" | 1,320.8 mm |
| Material Thickness | 10 ga. | 3.5814 mm |
| Stroke | 2.5" | 63.5 mm |
| Dimensions | 64" L-R x 45" F-B x 105" H | 64" L-R x 45" F-B x 105" H |
| Weight | 5,500 lbs. | 5,500 lbs. |

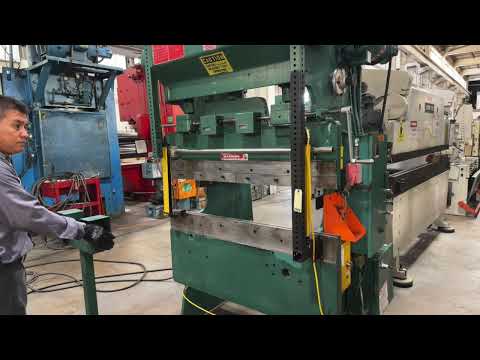

USED 52" X 10 GA. WYSONG #H-4052 HYDRA-MECHANICAL PRESS BRAKE
Model no. H-4052
Air counterbalance
Bending capacity: 52" x 10 ga. mild steel
Tonnage capacity: 40 tons
Overall length of bed & ram: 52"
Distance between housings: 38"
Stroke: 2-1/2"
Ram adjustment: 3"
Die space: 9"
Throat depth: 8-1/2"
Width of bed: 2"
Floor to top of bed: 34"
Weight approx. 5,500 lbs.
Overall dimensions approx. 64" L-R x 45" F-B x 105" H
Serial no. HPB18-135-X
Stock no. 29418
FOB ELK GROVE VILLAGE, IL
Free standing control with dual palm buttons for run &
emergency stop button
Electric foot switch
Pushbuttons for start – stop
Key selector switches for inch - off - manual - automatic,
hi lo - hi stop – lo & foot - palm
Manual ram adjustment with position indicators
Stroke length adjustment
Sectional ram die clamps
Bed and ram machined for angles
Safety light curtain (Safety light curtain offered without warranty)
Hydraulic pump, driven by
5 HP 1725 RPM 208/230/460/3/60 motor
This equipment is currently unavailable. Similar equipment available now is shown below.
