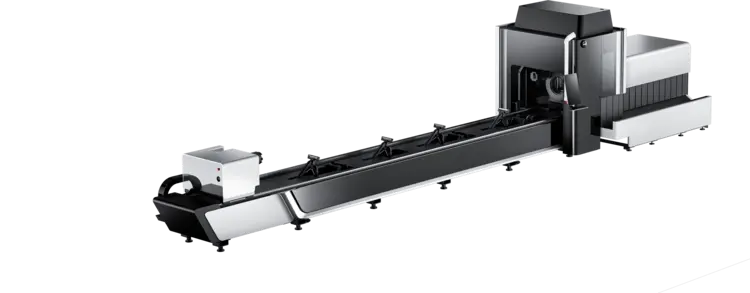

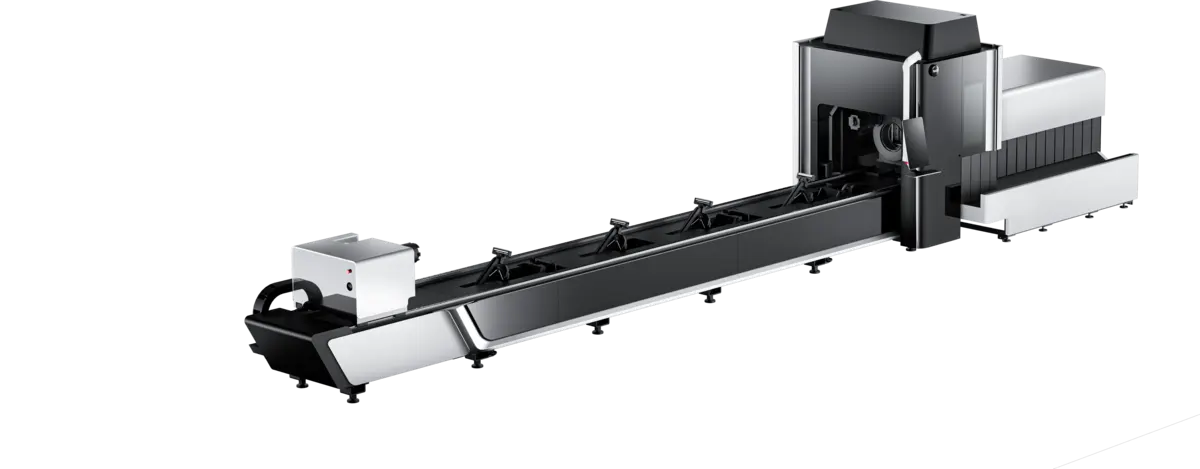

New Bodor T2 Tube Laser Cutting Machine
ConditionNew
0 available
New
New Bodor T2 Tube Laser Cutting Machine, maximum machinable tube length options: 255" or 362", laser power options: 6kW/3kW/1.5kW, round and square tube size range: .031"-9.05", rectangular tube side length 9.05≥side length≥0.31, 5 Year Warranty, Installation, Delivery and Training Included with Price. Chicagoland warehouse and technical support center.
NEW BODOR T2 TUBE LASER CUTTING MACHINE
All-around fiber laser metal tube cutting machine
Multiple function options help the laser tube cutting machine be used
in numerous tube cutting processes.
Maximum Machinable Tube Length Options: 255" or 362" (6500mm/9200mm)
Laser Output Power Options: 6000W / 3000W / 1500W
Effective Round Tube Cutting Diameter: 8-230mm
Effective Square Tube Cutting Diameter: 8*8mm - 230*230mm
Rectangular tube Edge Length: 8-230mm
X/Y-axis positioning accuracy: 0.05mm/m
X/Y-axis repositioning accuracy: 0.03mm
X axis maximum speed: 140m/min
Y axis maximum speed: 100m/min
5 Year Warranty
Installation, Delivery, and Training Included with Price
Expert High Speed Cutting Database
Gas-saving Nozzle with Steady Flow
Bodor Lightning
Angle Steel and Channel Steel Cutting
Four-side Edge Searching, Higher Precision
Specialized Laser Head BodorGenius T
Pneumatic Chuck
BodorThinker Software
BodorMES
BodorNest Tube
