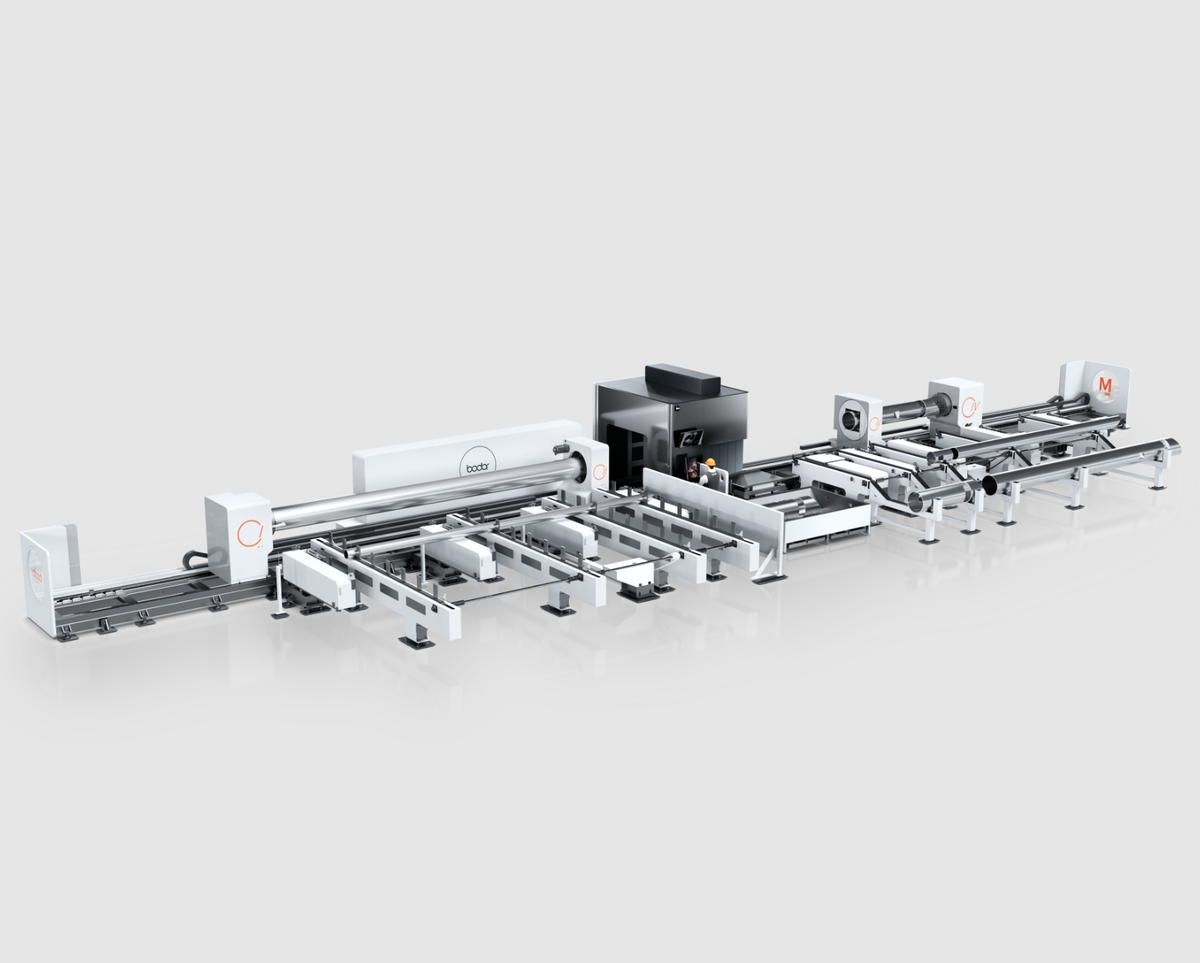

New Bodor M5 Multi-Chuck Laser Tube Cutting Machine
ConditionNew
0 available
New
Bodor M5, 25-356mm dia., 12000 max tube length, laser output power 6000W / 3000W, 5 Year Warranty
NEW BODOR M5 MULTI-CHUCK LASER TUBE CUTTING MACHINE
Laser Output Power: 6000W / 3000W
Chuck Quantity: 4
Shortest Remaining Material: 0
Effective Square Tube Cutting Scope: 60*60 - 530*530mm
Rectangular Tube Edge Length: 25mm - 356mm
Effective Round Tube Cutting Diameter: 60 - 530mm
Max. Machinable Tube Length: 12000mm
Max. Chuck Rotating Speed: 40r/min
X/Y-Axis Positioning Accuracy: 0.05mm/m
X/Y-Axis Repositioning Accuracy: 0.03mm
Max. Tube Weight: 2500kg
Stock no. 89523
5 Year Warranty
Installation, Delivery, and Training Included with Price
Gas-Saving Nozzle with Steady Flow
Bodor Lightning
Angle Steel and Channel Steel Cutting
Four-Side Edge Searching, Higher Precision
Pneumatic Chuck
BodorThinker Software
