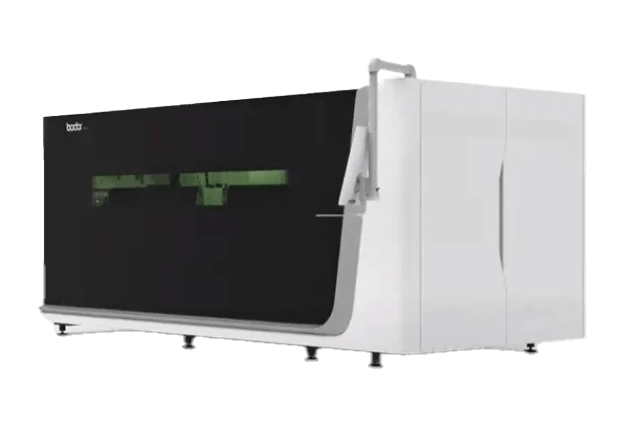

New Bodor i Series Fiber Laser
ConditionNew
New
Bodor i Series Compact Design Plate and Sheet Metal Cutting Fiber Laser, i series increases productivity of your production line without requiring much space. The system has been designed to take up as little floor space as possible.
Model i5
Working area 39" x 59" (1000 x 1500mm)
Machine overall dimensions 2980×2220×1970mm
Laser output power 6000W / 3000W / 1500W
Positioning accuracy ±0.05mm/m
Repositioning accuracy ±0.03mm
Max. linkage speed 91m/min
Max. acceleration 1.5G
Model i6
Working area 78" x 39" (2000 x 1000mm)
Machine overall dimensions 4049×1955×2230mm
Laser output power 6000W / 3000W / 1500W
Positioning accuracy ±0.05mm/m
Repositioning accuracy ±0.03mm
Max. linkage speed 91m/min
Max. acceleration 1.5G
Model i7
Working area 120" x 60" (3048 x 1524mm)
Machine overall dimensions 4955×2320×2200mm
Laser output power 12000W / 6000W / 3000W / 1500W
Positioning accuracy ±0.05mm/m
Repositioning accuracy ±0.03mm
Max. linkage speed 91m/min
Max. acceleration 1.5G
5 Year Warranty
Installation, Delivery, and Training Included with Price
Active collision avoidance
Lightning piercing
Intelligent remnant layout
Overheating offset
Anti-burning mineral casting plate
