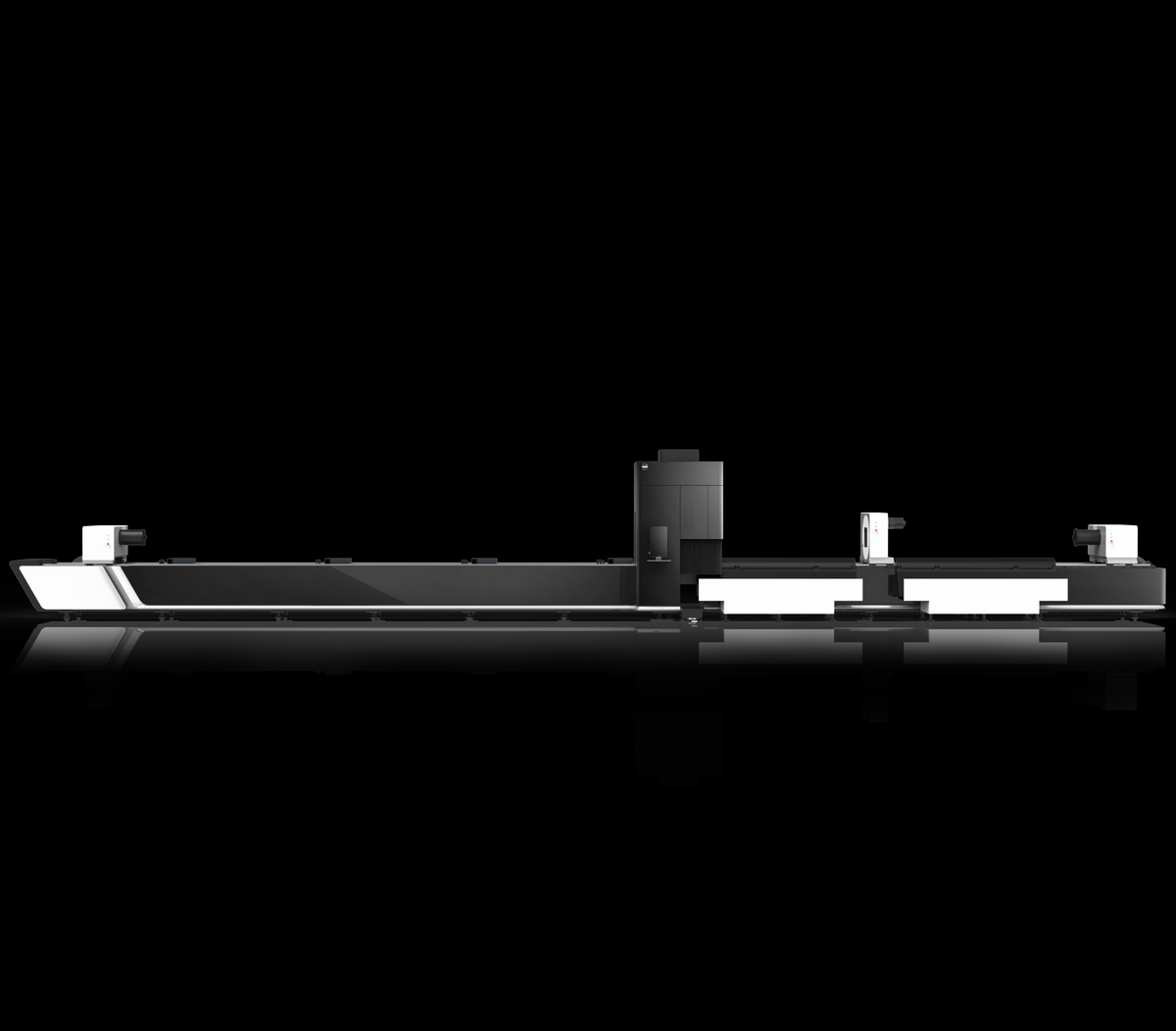

New Bodor M2 Multi-Chuck Laser Tube Cutting Machine
ConditionNew
New
Bodor M2, 8-230mm dia., 6500 max tube length, laser output power 6000W / 3000W / 1500W, 5 Year Warranty
Laser Output Power: 6000W / 3000W / 1500W
Chuck Quantity: 4
Shortest Remaining Material: 0
Effective Square Tube Cutting Scope: 8*8 - 230*230mm
Rectangular Tube Edge Length: 8mm - 230mm
Effective Round Tube Cutting Diameter: 8 - 230mm
Max. Machinable Tube Length: 6500mm
Max. Chuck Rotating Speed: 110r/min
X/Y-Axis Positioning Accuracy: 0.06mm/m
X/Y-Axis Repositioning Accuracy: 0.04mm
Max. Tube Weight: 300kg
5 Year Warranty
Installation, Delivery, and Training Included with Price
Gas-Saving Nozzle with Steady Flow
Bodor Lightning
Angle Steel and Channel Steel Cutting
Four-Side Edge Searching, Higher Precision
Pneumatic Chuck
BodorThinker Software
