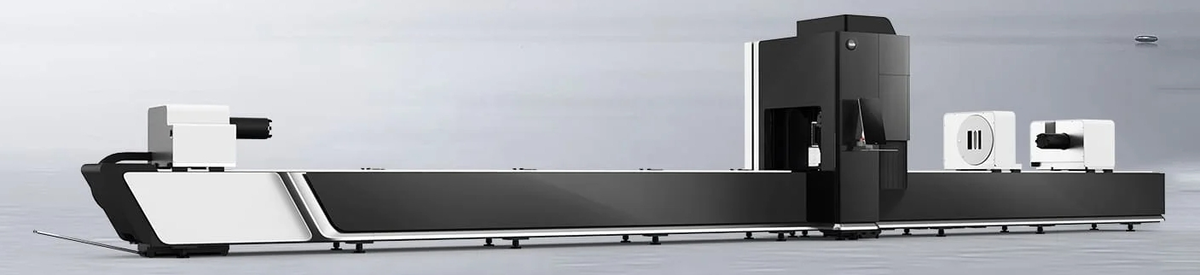

New Bodor M Series Multi-Chuck Laser Tube Cutting Machine
ConditionNew
New
Bodor M Series, Flagship Laser Metal Tube Cutting Machine, 5 Year Warranty, installation/training and delivery included in price, Laser Power Options from 1.5kW to 6 kW, Round Tube Diameters ranging from 8mm up to 356mm, Square Tube Diameters ranging from 8x8mm up to 356x356mm, Maximum Tube Lengths ranging from 650mm up to 12000mm
Bodor M2:
Laser Output Power: 6000W / 3000W / 1500W
Chuck Quantity: 4
Shortest Remaining Material: 0
Effective Square Tube Cutting Scope: □8*8-□230*230mm
Rectangular Tube Edge Length: 8mm-230mm
Effective Round Tube Cutting Diameter: Φ8-Φ230mm
Max. Machinable Tube Length: 6500mm
Max. Chuck Rotating Speed: 110r/min
X/Y-Axis Positioning Accuracy: 0.06mm/m
X/Y-Axis Repositioning Accuracy: 0.04mm
Max. Tube Weight: 300kg
Bodor M3:
Laser Output Power: 6000W / 3000W
Chuck Quantity: 4
Shortest Remaining Material: 0
Effective Square Tube Cutting Scope: □25*25-□356*356mm
Rectangular Tube Edge Length: 25mm-356mm
Effective Round Tube Cutting Diameter: Φ25-Φ356mm
Max. Machinable Tube Length: 12000mm
Max. Chuck Rotating Speed: 75r/min
X/Y-Axis Positioning Accuracy: 0.06mm/m
X/Y-Axis Repositioning Accuracy: 0.04mm
Max. Tube Weight: 800kg
5 Year Warranty
Installation, Delivery, and Training Included with Price
Gas-Saving Nozzle with Steady Flow
Bodor Lightning
Angle Steel and Channel Steel Cutting
Four-Side Edge Searching, Higher Precision
Pneumatic Chuck
BodorThinker Software
