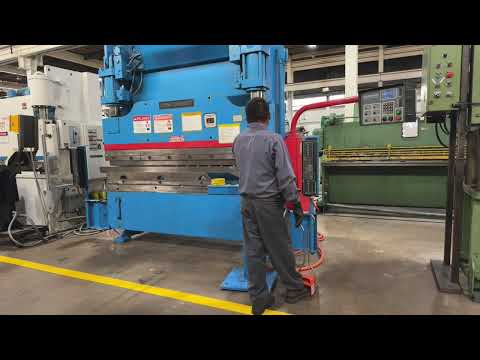

Used 8 Ft. X 12 Ga. Cincinnati #90CBII CNC Brake
Sold

Used 8 Ft. X 12 Ga. Cincinnati #90CBII CNC Brake

Sell Your CINCINNATI 90CBIIx6
Press Brake
Manufacturer:
CINCINNATI
Model:
90CBIIx6
Stock #:
29322
Serial #:
49858
90 Ton Cincinnati #90CBx6', 8' OA, 78" BH, 24" Cincinnati 2-axis back gauge, 8' x 12 ga., #29322
Tonnage90 T81.647 t
Overall Length8'2.4 m
Between Housings6'6"2 m
TypeHYDHYD
CNCYesYes
# Axis24" Cincinnati 2-axis back gauge24" Cincinnati 2-axis back gauge
Material Length96"2,438.4 mm
Material Thickness12 ga.2.3622 mm
Stroke8"203.2 mm
Dimensions133" L-R x 86" F-B x 113" H133" L-R x 86" F-B x 113" H
Weight13,000 lbs.13,000 lbs.

USED 8 FT. X 12 GA. CINCINNATI #90CBII CNC BRAKE
Model no. 90CBIIX6'
Bending capacities: 8' x 12 ga. mild steel
5' x 1/4" mild steel
Tonnage capacity: 90 tons
Overall length of bed & ram: 8'
Distance between housings: 78"
Stroke: 8"
Open height: 15"
Closed height: 7"
Throat depth: 7"
Width of bed: 3-1/2"
Floor to top of bed: 34"
Speeds approx.: 260"/minute high approach
10"/minute forming/low/medium/high
195"/minute return
Weight approx. 13,000 lbs.
Overall dimensions approx. 133" L-R x 86" F-B x 113" H
Serial no. 49858
Stock no. 29322
FOB ELK GROVE VILLAGE, IL

Specifications are accurate to the best of our knowledge, subject to verification.

24" Cincinnati 2-axis back gauge with vertical adjustment
4-1/4" high die rail
Free standing control with dual palm buttons for run –
emergency stop button & pushbutton for ram up
Electric foot switch
Stroke length adjustment
Ram tilt adjustment
Sectional ram die clamps
*Link Lite safety curtain (offered with no warranty)
Dovetail slots in front & back of bed
Hydraulic pump, driven by
15 HP 1760 RPM 208/440/3/60 motor
