Tonnage | 45 t | 49.604 T |
Overall Length | 8' | 2.4 m |
Between Housings | 78" | 2 m |
Type | HYD | HYD |
Material Length | 8' | 2,438.4 mm |
Material Thickness | 14 ga. | 1.9812 mm |
Stroke | 6" | 152.4 mm |
Dimensions | 109" L-R x 53" F-B x 96" H | 109" L-R x 53" F-B x 96" H |
Weight | 10,500 lbs. | 10,500 lbs. |

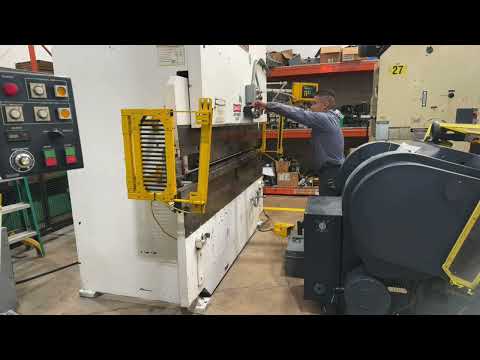

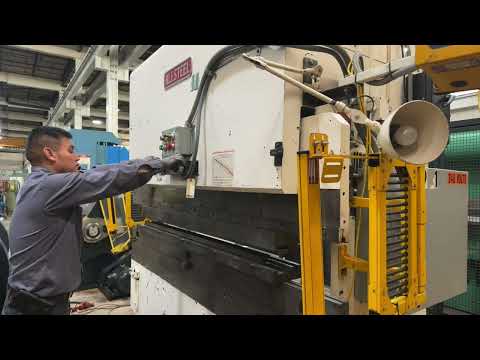

USED 8 FT. X 14 GA. ALLSTEEL HYDRO MECHANICAL PRESS BRAKE
Model no. 45-8
Bending capacities: 8' x 14 ga. mild steel
6' x 12 ga. mild steel
Tonnage capacity: 45 tons
Overall length of bed & ram: 8'
Distance between housings: 78"
Stroke: 0-6" (variable)
Open height: 15"
Throat depth: 8-1/2"
Width of bed: 2"
Ram speeds approx.: 2" per second
Weight approx. 10,500 lbs.
Overall dimensions approx. 109" L-R x 53" F-B x 96" H
Serial no. 557
Stock no. 29183
FOB ELK GROVE VILLAGE, IL
24" front operated manual back gauge via hand wheel
Bed & ram machined for angle front & back
5" high die rail
Dual palm buttons for run with emergency stop button
Electric foot switch
Pushbuttons for start - stop
Key selector switches for manual – auto; hand - foot
Stroke length adjustment
Sectional ram die clamps
6' top/bottom dies
*Merlin safety light curtain
Hydraulic pump, driven by
10 HP 1750 RPM 230/460/3/60 motor
*Safety curtain being offered with no warranty
