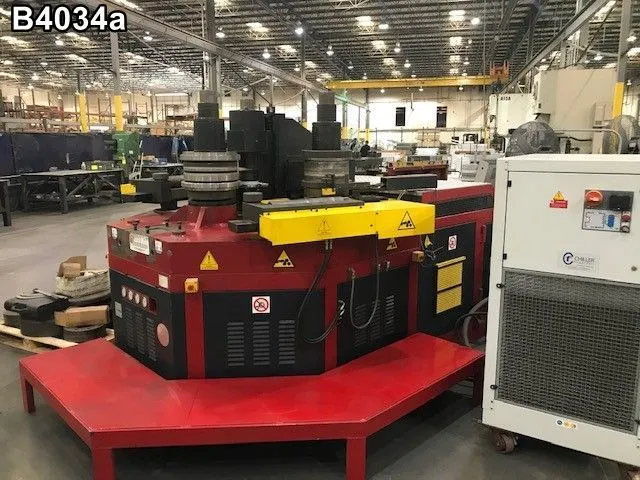

Used Tauring Alpha 200 CNC Angle Bending Roll

USED 10" X 10" X .40" TAURING ALPHA 200 CNC ANGLE BENDING ROLL - NEW 2014
With Alpha200CNCi CNC Control
Square Tube: 10" x 10" x .40" / Min. Radius: 80"
Round Tube: 10.75" x 0.5" / Min. Radius: 87"
Flat Bar (Hard Way): 10" x 2.3 / Min. Radius: 32"
Angle (Leg Out): 7.8" x 7.8" x 0.78" / Min. Radius: 78"
H Beam: IPE 330 / Min. Radius: 75"
(MINIMUM RADII SHOWN MAY REQUIRE
MULTI-PASS)
Driven Rolls: 3
Shaft Diameter: 490mm
Standard Shaft Working Length: 15.75"
Shaft Revolutions Per Minute: 7.1 R.P.M.
Main Motor: 24.1 HP

Current Electrics: Voltage - 230 Volt/3 Phase/60Hz and
480/3/60Hz available
CNC Control: Alpha200CNCi:
The CNCi is an advanced numerical control Windows based
able to manage two or more interpolated axes with
unsurpassed progression and accuracy.
The 15" touch screen can activate macro-instructions and
commands by simply touching the icons presented on the
screen.
One of CNCi strength points is represented by its simple
and intuitive software, that allows programming any types
of geometrical shape - regular and irregular - by simply
drawing it on the screen or importing it from a "dxf" file.
The shape can then be modified by simply acting on its
segments so to make them longer or shorter or clicking on
the arrow to enlarge or reduce the bending curves; all
tasks are recognized by the "bending program"

EQUIPPED WITH: HE Device
Hydraulic Roll Adjustment
Universal Tool Set - 1 Set
Year of Mfg: 2014
Weight approx. 22,046 lbs.
Overall dimensions approx. 41" L-R x 61" F-B x 74" H
Stock no. B4034

(SPECIFICATIONS SUBJECT TO VERIFICATION)
