| Capacity 1st Dim | 1/2" | 1/2" |
| Dimensions | 46" L-R x 100" F-B x 75" H | 46" L-R x 100" F-B x 75" H |
| Weight | 5,650 lbs | 5,650 lbs |

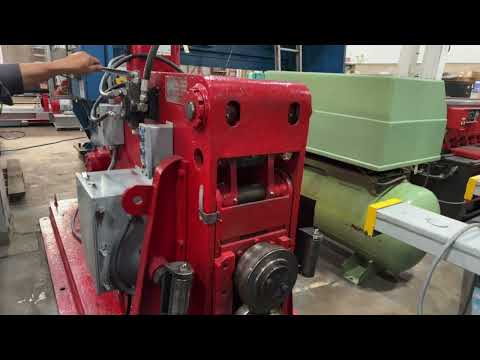

USED 1/2" WEBB #M-5 OFFSET ROLL
Model no. M-5
Capacity: 1/2" maximum thickness mild steel
1/4" minimum thickness with standard dies
Shell diameter: 24" minimum (6' maximum with turntable)
Number of material settings: 5
Roll speeds approx.: 24 FPM
Serial no. 5664
Stock no. 29153
FOB ELK GROVE VILLAGE, IL
TYWLER
Pushbuttons for start - stop - forward - reverse - off
One set of rolls
Hydraulic upper roll adjustment
(2) adjustable guide rolls - left & right
2 HP 1725 RPM 230/460/3/60 hydraulic upper roll adjustment motor
10 HP 1760 RPM 230/460/3/60 motor
This equipment is currently unavailable. Similar equipment available now is shown below.
