Used 75 Ton French Oil Hydraulic Molding & Laminating Press

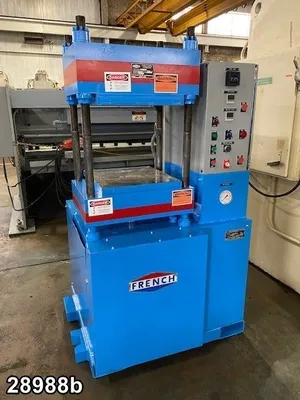

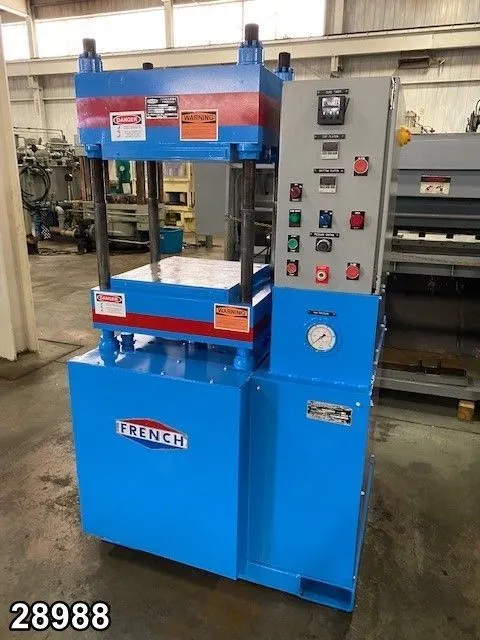

USED 75 TON FRENCH OIL HYDRAULIC MOLDING & LAMINATING PRESS
New 2006
4 post upstroke type; floor standing
Distance between 1.75" dia. posts: 20" L-R x 13.5" F-B
Platen area (nominal): 18" L-R x 18" F-B
Overall dimensions of platen: 25" L-R x 18" F-B
Stroke of fully guided platen: Approx. 0 - 12" maximum
Daylight opening (total): 15 - 22" maximum (adjustable)
Daylight opening between
hot plates (1): 11" - 18" maximum (adjustable)
Hot plates (2): 18" L-R x 18" F-B x 1.5" thick
(electrically heated to 600° F)
Insulation (2): 18" L-R x 18" F-B x .5" thick
Main ram diameter (2): 8"/3.5" @ 2984 PSI - 75 tons
Floor to top of moving platen: 43"
Power unit (base of press): Hydraulic pump, driven by
Approx. 10 HP motor
Controls: Pushbutton operation w/stroke &
pressure control
Dual palm buttons
Cycle timer
(2) digital temperature indicating
controllers
Pressure gauge
Weight approx. 5,000 lbs.
Overall dimensions approx. 45" L-R x 40" F-B x 76" H

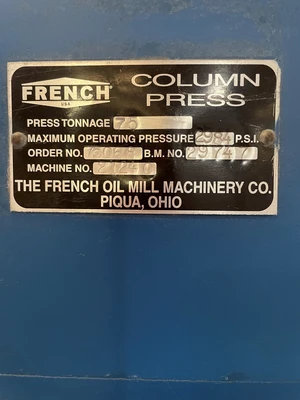

Serial no. 21240
Stock no. 28988
FOB ELK GROVE VILLAGE, IL
