Used 6 Ton Denison Multipress Hydraulic C Frame Press
Unavailable

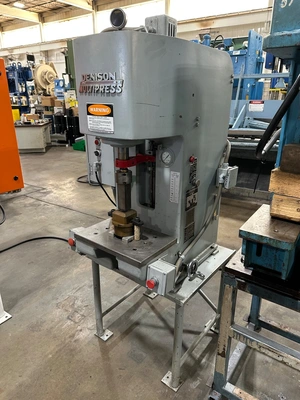

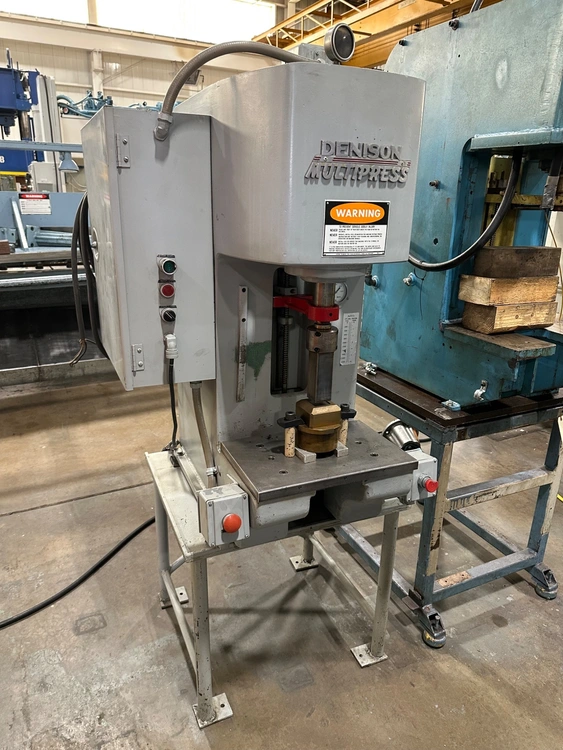

Used 6 Ton Denison Multipress Hydraulic C Frame Press

Sell Your DENISON MULTIPRESS RO65
C Frame and Gap Frame Press
Manufacturer:
DENISON MULTIPRESS
Model:
RO65
Condition:
Good
Stock #:
19581
6 Ton Denison Multipress, Model R065LC204FSD266D210A12, 17.5" x 10.5" bed, 10" str, 16" DL, #19581
Tonnage6 T5.443 t
Stroke10"254 mm
Daylight16"406.4 mm
Bed (L-R)17"431.8 mm
Bed (F-B)10.5"266.7 mm
IPM Closing200 in/min.508 cm/min.
IPM Pressing200 in/min.508 cm/min.
Up or Downstroke?DownstrokeDownstroke
Throat Size6"152.4 mm
Dimensions30" L-R x 36" F-B x 71" H30" L-R x 36" F-B x 71" H
Weight1600 lbs.1600 lbs.

6 TON DENISON HYDRAULIC C FRAME PRESS
Model R065LC204FSD266D210A12
Downstroke
Table Model On Fabricated Stand
Bed Area: 17" L-R x 10.5" F-B w/5" U-Slot
Stroke: 0-10" Maximum
Daylight Opening (Total): 16" Maximum
Throat Depth: 6"
Ram Diameter: 2.75"/2" @ 2020 PSI - 6 Tons
Floor To Top Of Bed: 32"
Power Unit: Denison Model TMB15R2
Fixed Volume Vane Pump
7 GPM @ 2500 PSI
Driven By 5 HP 1750 RPM
208/220/440/3/60 Motor
Speeds Approx.: 200"/Min. Closing
200"/Min. Pressing to 6 Tons
560"/Min. Return
Weight approx. 1600 Lbs.
Overall Dimensions Approx. 30" L-R x 36" F-B x 71" H
Serial No. 18379
Stock No. 19581

FOB ELK GROVE VILLAGE, IL

Specifications are accurate to the best of our knowledge, subject to verification.

Controls:
Pushbutton Operation w/Stroke & Pressure Control
Dual Palm Buttons
Inching Control
Pressure Gauge

This equipment is currently unavailable. Similar equipment available now is shown below.
