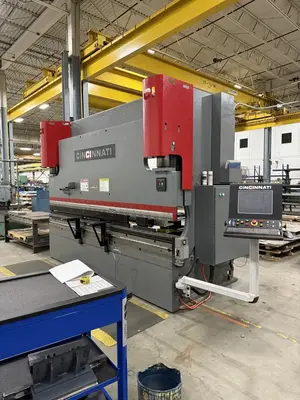

175 Ton Cincinnati 175CBx10 2 Axis CNC Brake - New 2020
ConditionUsed
1 available
175 Ton Cincinnati, Model 175CBx10, 12' OA, 10' BH, 2 Axis CNC, New 2020
Throat Depth: 16"
Open Height: 17"
Power: 460/3/60
Resolution: .0004"
All machinery specifications must be independently verified by buyer.
Programmable Forming Modes (Angle - Position - Tonnage)
Programmable Ram Tilt - Clamp - Retract Function
Programmable Speeds (Forming and Return)
Programmable Up Stroke and Down Stroke Stop
Remote Monitoring Capability
15.1" TFT LCD Flat Panel Display with Touchscreen Interface
4" Flat-Top Filler Block (3.5" Tall x 4" Wide / Set Screws on 6" Centers)
Tooling Package (Each Profile 1-Set Sectionalized / 7-Segments of 18" = Total Length of 143.88")
Auto Tool Load Calculation
Automatic Ram Leveling System
Bolt-on Ram Nose (Sectionalized and Hardened)
Graphical Tool Interface
Heavy Duty Backgauge (24" X-Axis / 8" Manual R-Axis)
PC Based Operator Control with Windows Operating System
