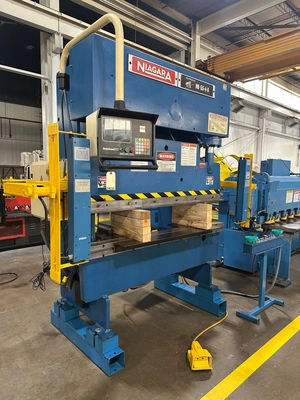

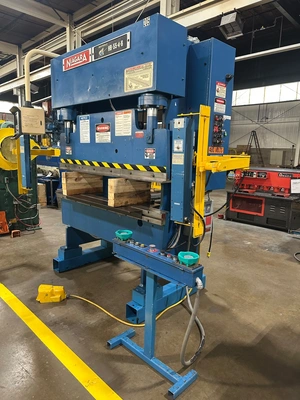

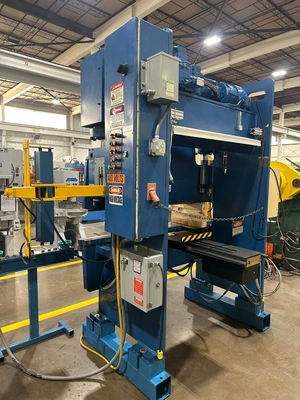

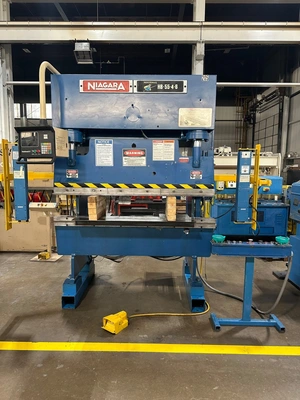

Used 6 Ft. X 10 Ga. Niagara Model HB-55-4-6 2-Axis CNC Brake
Unavailable

Used 6 Ft. X 10 Ga. Niagara Model HB-55-4-6 2-Axis CNC Brake

Sell Your NIAGARA HB-55-4-6
Press Brake
Manufacturer:
NIAGARA
Model:
HB-55-4-6
Stock #:
29535
Serial #:
P53349
55 Ton Niagara HB-55-4-6, 6' OA, 54" BH, 2-axis CNC, #29535
Tonnage55 T49.895 t
Overall Length72"1.8 m
Between Housings54"1.4 m
TypeHYDHYD
CNCYesYes
# Axis22
Material Length6'1,828.8 mm
Material Thickness10 ga.3.5814 mm
Stroke6"152.4 mm

USED 6 FT. X 10 GA. NIAGARA MODEL HB-55-4-6 2-AXIS CNC BRAKE
Model no. HB-55-4-6
Bending capacity: 6' x 10 ga. mild steel
Tonnage capacity: 55 tons
Overall length of bed & ram: 6'
Distance between housings: 54"
Stroke: 6"
Open height: 13"
Closed height: 7"
Width of bed: 2-1/2"
Floor to top of bed: 40"
Speeds approx.: 178"/minute advanced
78"/minute press
142"/minute return
Weight approx. 6700 lbs.
Serial no. P53349
Stock no. 29535
FOB ELK GROVE VILLAGE, IL

Specifications are accurate to the best of our knowledge, subject to verification.

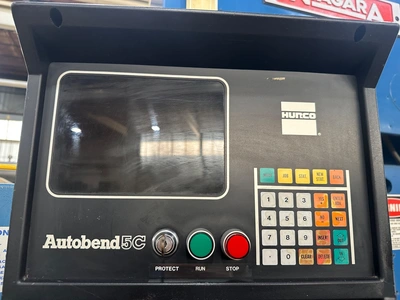

24" Hurco 'Autobend 5C' 2-axis CNC back gauge
Free standing control with dual palm buttons & emergency stop button
Electric foot switch
Pushbuttons for start – stop, ram up – down - inch

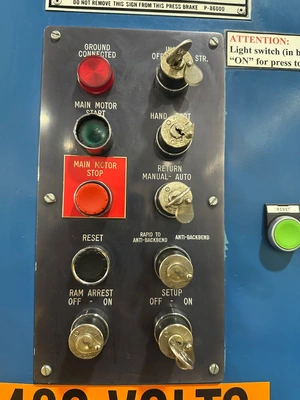

Key selector switches for inch - off – single stroke – hand - foot - manual return - auto return,
rapid to anti backward - anti backward
Ram tilt adjustment
Stroke length adjustment
Speed adjustment control
*Triad safety light curtain (Safety light curtain being offered with no warranty)
Sectional ram die clamps
Dovetail slot in front & back of bed
Hydraulic pump, driven by
5 HP 1800 RPM 230/460/3/60 motor
