Used 12 Ft. X 3/16" Wysong #MTH175-144 CNC Brake
Sold

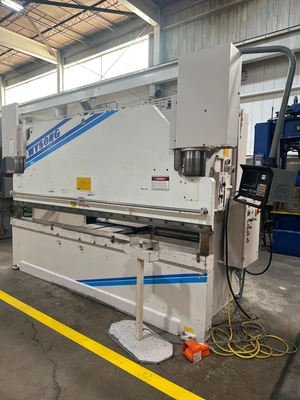

Used 12 Ft. X 3/16" Wysong #MTH175-144 CNC Brake

Sell Your WYSONG MTH-175-144
Press Brake
Manufacturer:
WYSONG
Model:
MTH-175-144
Stock #:
29520
Serial #:
MT2-144
175 Ton Wysong #MTH175-144, 12' OA, 126" BH, 12' x 3/16", 2-Axis CNC, #29520
Tonnage175 T158.758 t
Overall Length12'3.7 m
Between Housings126"3.2 m
TypeHYDHYD
CNCYesYes
# Axis22
Material Length12'3,657.6 mm
Material Thickness3/16"4.8133 mm
Stroke8"203.2 mm
Dimensions164" L-R x 68" F-B x 111" H164" L-R x 68" F-B x 111" H
Weight25,500 lbs.25,500 lbs.

12 FT. X 3/16" WYSONG #MTH175-144 CNC BRAKE
Model MTH175-144
Bending capacity: 12' x 3/16" mild steel
Tonnage capacity: 175 tons
Overall length of bed & ram: 12'
Distance between housings: 10'6"
Stroke: 8"
Open height: 17"
Closed height: 9"
Throat depth: 8"
Width of bed: 7"
Floor to top of bed: 34"
Speeds approx.: 300"/minute approach
22"/minute pressing
225"/minute return
Weight approx. 25,500 lbs.
Overall dimensions approx. 164" L-R x 68" F-B x 111" H
Serial no. MT2-144
Stock no. 29520
FOB ELK GROVE VILLAGE, IL

Specifications are accurate to the best of our knowledge, subject to verification.

24" Hurco 'Autobend 7' two axis back gauge with readout in inches & millimeters
& vertical adjustment
Free standing control with dual palm buttons & emergency stop button
Electric foot switch
Pushbuttons for start – stop
Key selector switches for inch – off – auto - manual; hi-lo; hi stop lo; palm – foot
Tonnage control knob with indicator
Stroke length adjustment
Ram tilt adjustment
One shot oil lubrication
Sectional ram die clamps
Hydraulic pump, driven by
15 HP 1765 RPM 208/230/460/3/60 motor
