Amada EG-6013 AR Compact Bending Cell w/ Servo Electric Brake and High Precision Robot
$324,500.00 USD
ConditionUsed
1 available
Amada EG-6013 AR Ultra Compact Bending Cell, 67 Ton Dual Servo Electric Press Brake, Yaskawa MH6S-10 High Precision 7-Axis Bending Robot, AMNC 3i CNC Control with Vertical 18.5" Multi-Touch Display, Very low hours (4500 hours), New 2017

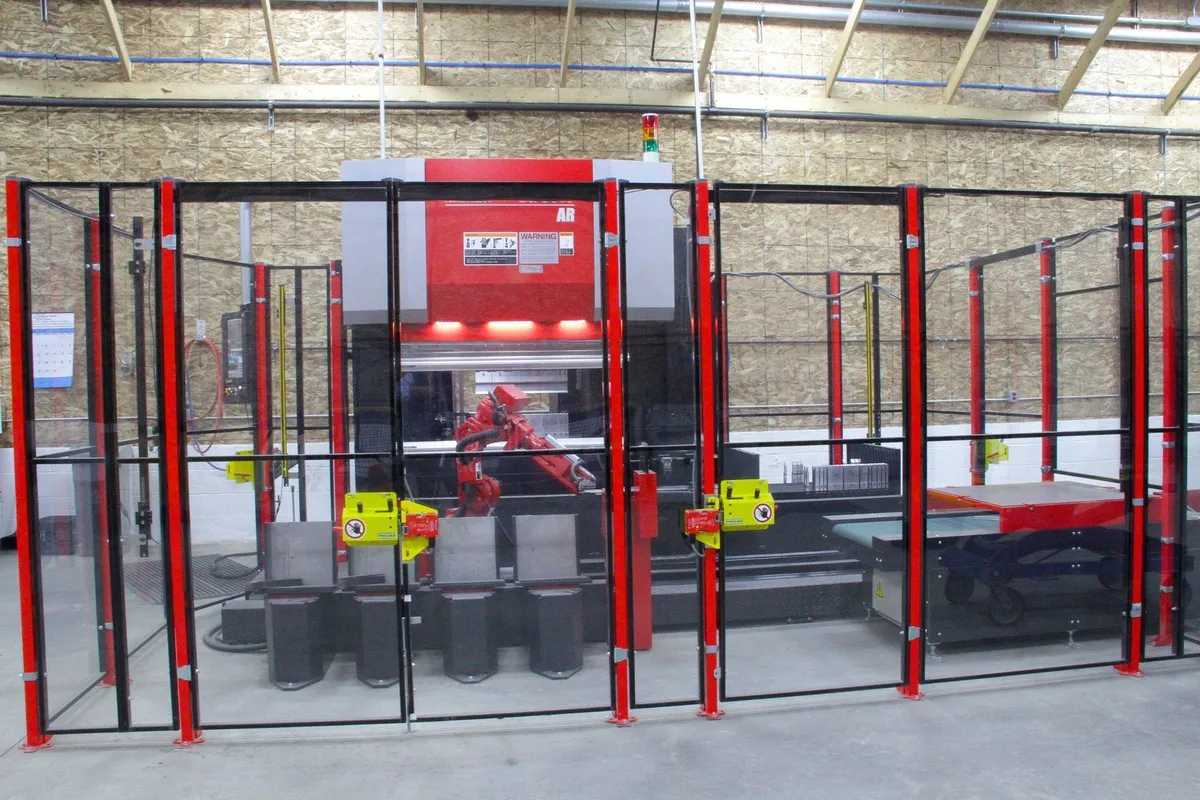

Amada EG-6013 AR Compact Bending Cell
w/ Servo Electric Press Brake and Automated Robotic Bending System
New 2017 - Excellent Condition
Very Low Hours (4,581 Total Hours, 3,961 Run Time)
Maintained Under Amada Service Since Purchased
Machine Can Be Inspected in Plant and Under Power
Features
AMNC 3i CNC Control with Vertical 18.5" Multi-Touch Display
Dual Electric Servo Drive
Automatic Tool Changer and Part Loader/Unloader

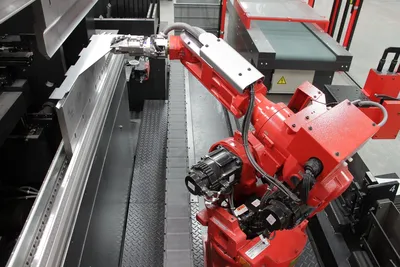

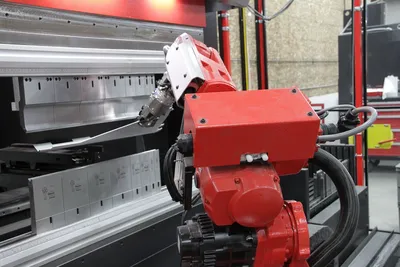

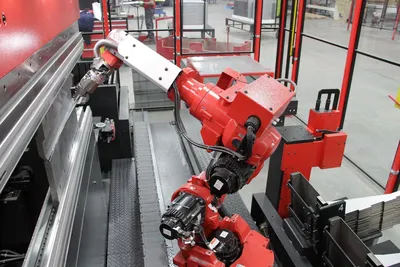

Yaskawa MH6S-10 High Precision 7-Axis Bending Robot
Extensive Punch and Die Package Package
PRESS BRAKE SPECIFICATIONS
Maximum Tonnage Capacity: 67 Ton
Maximum Bending Length: 53.1"
Stroke Length: 6"
Open Height: 16.5"
Approach Speed: 8.7"/sec.
Bend Speed: 1"/sec.
Return Speed: 8.7"/sec.
Floor Space: 211" L x 154" Wide x 105" High
Weight (Brake Only): 8,200 Lbs.
ROBOT SPECIFICATIONS
Axis Configuration: 6-Axis
Carriage Axis: 120"
Max. Part Weight: 22 Lbs.
Maximum Reach P-Point: 9.25"
Tool Holder Length: 49.2"
Max. Tool Length: 31.5"
# of Tools: 10
AMNC 3i CNC Control with Vertical 18.5" Multi-Touch Display
Dual Electric Servo Drive
Automatic Tool Changer
Yaskawa MH6S-10 High Precision 7-Axis Bending Robot
Potentiometer Backgauge with Side Gauge System
High-Rigidity Frame for Large Open Height and Stroke
3 Gripper Station, Seamless Tool Change to Production
Load/Unload to Drop Box or Conveyor
$50,000 Amada Tooling Package Included
Tooling List:
DIE: FEL 89845 14 X 86 DEGREE R=25
H=150 27.4KG/M MAX 1000 KN/M
SOOOOO5190
20mm x 4
15mm x 4
10mm x 2
100mm x 8
50mm x 4
30mm x 4
PUNCH: FEL 20166SE 86 DEGREE R=.06
H=150 27.4KG/M MAX 1000 KN/M
SOOOOO5103
100mm x 4
50mm x 2
30mm x 2
25mm x 2
20mm x 2
15mm x 2
10mm x 1
