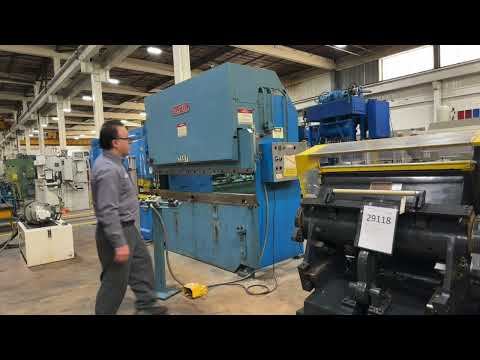

Used Allsteel 45-8 Hydraulic Brake

USED 8 FT. X 14 GA. ALLSTEEL 45-8 HYDRAULIC BRAKE
Model no. 45-8
Bending capacity: 8' x 14 ga. mild steel
6' x 11 ga. mild steel
4' x 10 ga. mild steel
Tonnage capacity: 45 tons
Overall length of bed & ram: 8'
Distance between housings: 78"
Stroke: 6"
Open height: 15"
Closed height: 9"
Throat depth: 8"
Width of bed: 2"
Floor to top of bed: 33"
Speeds approx.: 2"/second
EQUIPPED WITH: Approx. 24" manual micrometer back gauge
5" high die rail
Free standing control with dual sensor buttons,
electric foot switch & emergency stop button
Pushbuttons for start - stop
Key selector switches for inch - auto - stop,
hand - foot, stroke length adjustment
Sectional ram die clamps
*Link lite safety curtain
Hydraulic pump, driven by
15 HP 1750 RPM 230/460/3/60 motor
Weight approx. 10,000 lbs.
Overall dimensions approx. 100" L-R x 48" F-B x 98" H
Serial no. Y-832
Stock no. 29081
FOB ELK GROVE VILLAGE, IL

*Safety curtain offered with no warranty
