500 Ton Accudyne Heated Platen Compression Molding Press

500 Ton Accudyne Heated Platen Compression Molding Press

Sell Your ACCUDYNE UPS/SS
847-640-8600
Sales@kemplermachinery.com
ConditionUsed
1 available
Sell Your ACCUDYNE UPS/SS

Overview

Type:
Heated Platen Press and Laminating Press
Manufacturer:
ACCUDYNE
Model:
UPS/SS
Year:
2015
Stock #:
89628
Status:
For Sale
Serial #:
21004

Description

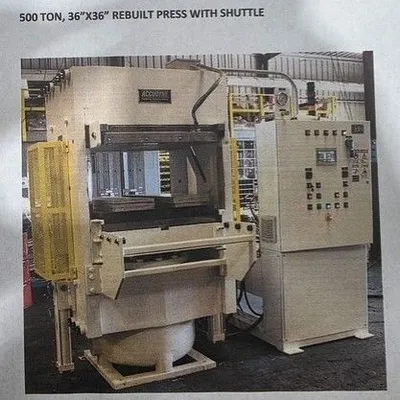

500 Ton Accudyne, 36" x 36" Heated Platens (400 deg F), Shuttle Feed, 20" stroke, 20" Daylight

This press was completely rebuilt by Accudyne in 2021 (believed to be built originally in 2015)

Tonnage500 T453.593 t
Heating ElementElectricElectric
# of Openings11
DesignStraight SideStraight Side
Heated Platen (L-R)36"914.4 mm
Heated Platen (F-B)36"914.4 mm
Bed (L-R)36 in
Bed (F-B)36 in
Stroke20"508 mm
Daylight20"508 mm
Weight27,00027,000

Stroke Length (Main Cylinder): 20"
Daylight: 20"
Platen size: 36" x 36"
Max operating temperature: 400 deg F

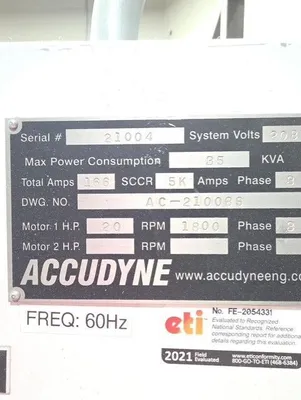

System Volts: 208
Max Power Consumption: 35 KVA
Total AMPS: 166/SCRR 5K AMPS/Phase 3
Motor: 1 H.P. 20/RPM 1800/Phase 3
Serial #: 21004
Weight (approx.): 27,000 lbs

This press was completely rebuilt by Accudyne in 2021 (believed to be built originally in 2015)

Specifications are accurate to the best of our knowledge, subject to verification.

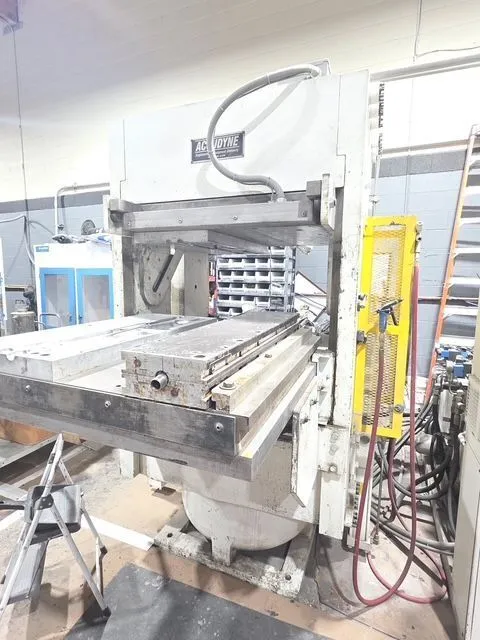

Shuttle Table (with Clam Shell Style Opening Operation)
