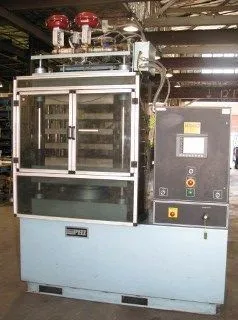

100 Ton PHI Compression Molding Press

Description

100 Ton Capacity
4 Post
24.5″X24.5″ platens
3″-18″ DL
12″ STR

MODEL #5100R2424S-5CCS-R-Y(2)-58. SERIAL #03-03-001. CURRENTLY SET UP WITH FIVE 24.5” X 24.5” X 2” PLATENS THAT WERE BEING STEAM-HEATED AND WATER-COOLED. MAX OPERATING TEMP IS APPROX 350 F. FOUR DAYLIGHT OPENINGS OF APPROX 3” EACH; WITH JUST TWO PLATENS INSTALLED THE DAYLIGHT WOULD BE APPROX 18”. CLAMP CYLINDER IS: 9” BORE; SINGLE-ACTING WITH APPROX 12” STROKE. CLEARANCE BETWEEN POSTS IS 27.75” L TO R X 18.5” F TO B. NOMINAL BED SIZE OF 27.75” X 24.5”. FULLY GUIDED ON 2.5” DIAMETER TIE RODS WITH 6” BUSHINGS. OPERATOR HEIGHT IS APPROX 50” (WITH PLATEN). FORK POCKETS. FULLY GUARDED. SELF-CONTAINED HYDRAULIC SYSTEM: 3 HP MOTOR (1200 RPM; 460 VOLT); 1 HP MOTOR (1800 RPM; 460 VOLT); APPROX 20 GALLON RESERVOIR; ADJUSTABLE PRESSURE; ETC… ELECTRICAL CONTROLS INCLUDE: ALLEN-BRADLEY SLC 500 PLC; RED LION OPERATOR INTERFACE VX500; 2 CLOSE BUTTONS; OPEN; RESET; E-STOP; INTERLOCK ON FRONT DOOR; ETC… 175 PSIG STEAM FOR PLATEN HEATING. 45 GPM WATER AND 50 SCFM AIR FOR OPTIONAL COOLING. OVERALL DIMENSIONS APPROX 73” X 68” X 102” TALL. APPROX 10,000 POUNDS. SOME PRINTS.
