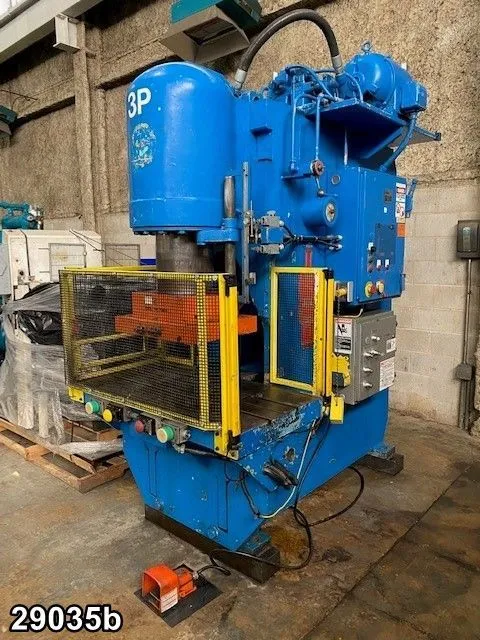

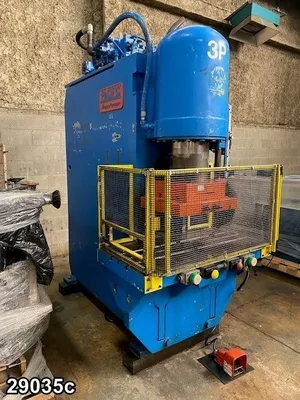

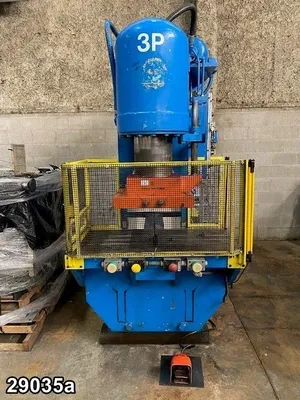

Used 200 Ton Pacific #200PF Hydraulic C-Frame Press

USED 200 TON PACIFIC #200PF HYDRAULIC C-FRAME PRESS
Model 200PF
Floor standing
Bed area: 48" L-R x 24" F-B
Tool holder: 15" L-R x 15" F-B (T-slotted)
Ram bolster: 22" L-R x 18" F-B
Stroke: 0 - 12" maximum
Daylight opening (total): 23" maximum
Daylight opening between
ram bolster & bed: 20" maximum
Throat depth: 11"
Ram diameter: 16"/11.25" @ 1990 PSI - 200 tons
Floor to top of bed: 36"
Power unit: Vickers hydraulic pump, driven by
30 HP 1800 230/460/3/60 motor
Speeds approx.: 96"/minute closing
43"/minute pressing to 200 tons
90"/minute return
Controls: Pushbutton operation w/stroke &
pressure control
Dual touch palm buttons
Electric foot switch
Selector switch for inch or single stroke
Pressure gauge
Weight approx. 14,500 lbs.
Overall dimensions approx. 48" L-R x 88" F-B x 110" H
Serial no. 3890
Stock no. F29035
