8 Ton Multipress M5P-8, 12" str., 18" DL, 14" x 11.5" bed, new 2008, #F29156

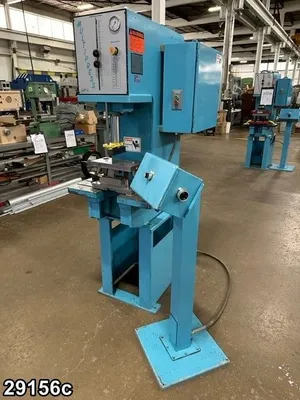

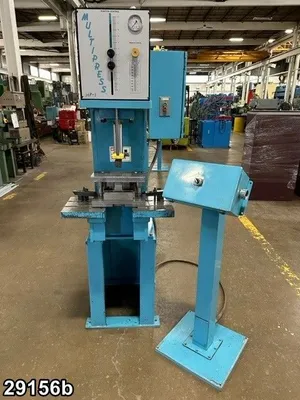

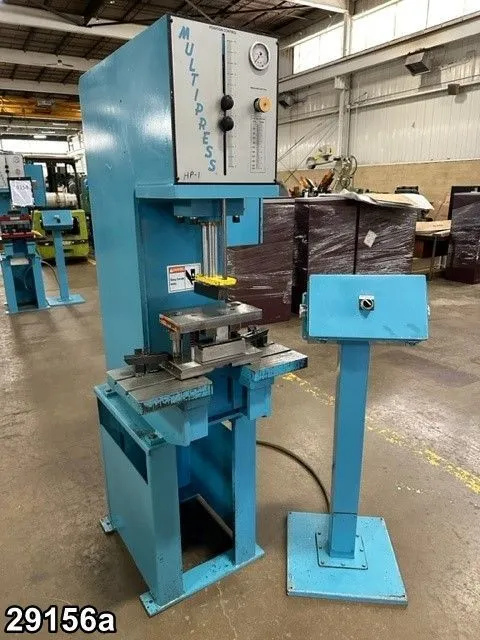

USED 8 TON DENISON HYDRAULIC C FRAME PRESS
New 2008
Model M5P-8
Table model on factory stand
Bed area: 14" L-R x 11.5" F-B w/6" U-slot
Bolster: 25" L-R x 11" F-B x 1.5" thick
Stroke: 0 - 12" maximum
Daylight opening (total): 18" maximum
Daylight opening (over bolster): 16.5" maximum
Throat depth: 7"
Ram diameter: 3.25"/2" @ 1929 PSI - 8 tons
Floor to top of bed: 36"
Power unit: Hydraulic pump, driven by
5 HP 1750 RPM 230/460/3/60 motor
Speeds approx.: 440"/minute closing
150"/minute pressing to 8 tons
250"/minute return
Controls: Pushbutton operation with stroke &
pressure control
Dual palm buttons
Selector switch for cycle or jog
Pressure gauge
Weight approx. 1400 lbs.
Overall dimensions approx. 32" L-R x 40" F-B x 78" H

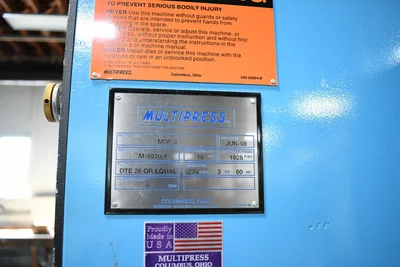

Serial no. M-5936-1
Stock no. F29156
